目錄Handler是什么？Handler 的基本使用用法一：通過 send 方法用法二：通過 post 方法Handler 類MessageQueue 類Looper 類Handler 的消息接收過程Handler是什么？

Handler 是一個可以實現多線程間切換的類，通過 Handler 可以輕松地將一個任務切換到 Handler 所在的線程中去執行。我們最常用的使用的場景就是更新 UI 了，比如我們?cè)谧泳€程中訪問網絡，拿到數據后我們 UI 要做一些改變，如果此時我們直接訪問 UI 控件，就會觸發異常了。這個時候我們往往會通過 Handler 將更新 UI 的操作切換到主線程中。

Handler 的基本使用用法一：通過 send 方法

public class MainActivity extends AppCompatActivity { private static final String TAG = 'MainActivity'; private MyHandler mMyHandler = new MyHandler(); @Override protected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);new Thread(new Runnable() { @Override public void run() {Message message = Message.obtain(mMyHandler,0,'通過 send 方法');mMyHandler.sendMessage(message); }}).start(); } private static class MyHandler extends Handler{@Overridepublic void handleMessage(Message msg) { switch (msg.what){case 0: Toast.makeText(MainActivity.this,msg.obj.toString(),Toast.LENGTH_SHORT).show(); break; }} }}用法二：通過 post 方法

public class MainActivity extends AppCompatActivity { private static final String TAG = 'MainActivity'; private Handler mMyHandler = new Handler(); @Override protected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);new Thread(new Runnable() { @Override public void run() {mMyHandler.post(new Runnable() { @Override public void run() {Toast.makeText(MainActivity.this,'通過post方法',Toast.LENGTH_SHORT).show(); }}); }}).start(); }}

其實，通過 post 方法最后通過 send 方法來完成的。這個我們稍后會分析。講到 Handler，我們不得不提起 MessageQueue 類 和 Looper 類。 Handler 通過 send 方法 發送一個消息，會調用 MessageQueue 的 enqueueMessage 方法 將這個消息插入到 MessageQueue 中，然后 Looper 發現有消息來臨時，通過一系列的方法調用后，Handler 如果是通過 post 方法就會執行 post 方法里面的 Runnable ，如果是通過 send 方法就會執行 Handler 的 handleMessage 。這么說感覺有點云里霧里的，讓我們仔細的來看下 Handler 類、MessageQueue 類和 Looper 類。

Handler 類

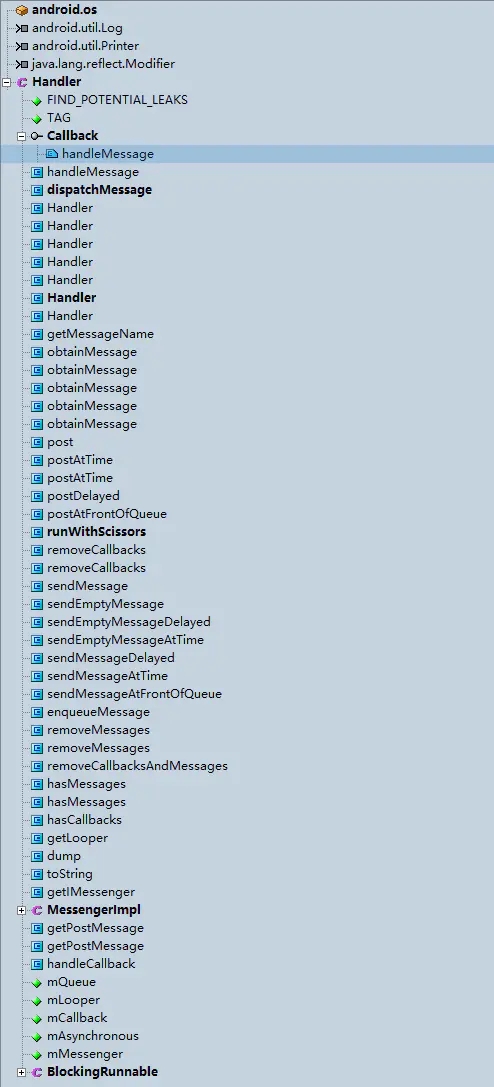

我們先來看下 Handler 類的結構

Handler 類結構.png

Handler 的工作主要包括消息的發送和接收過程。一般來說，消息的發送和消息的接收是位于不同的線程。我們首先來看 post 方法。

/** * Causes the Runnable r to be added to the message queue. * The runnable will be run on the thread to which this handler is * attached. * * @param r The Runnable that will be executed. * * @return Returns true if the Runnable was successfully placed in to the * message queue. Returns false on failure, usually because the * looper processing the message queue is exiting. */public final boolean post(Runnable r){ return sendMessageDelayed(getPostMessage(r), 0);}

這里調用了 sendMessageDelayed 方法

/** * Enqueue a message into the message queue after all pending messages * before (current time + delayMillis). You will receive it in * {@link #handleMessage}, in the thread attached to this handler. * * @return Returns true if the message was successfully placed in to the * message queue. Returns false on failure, usually because the * looper processing the message queue is exiting. Note that a * result of true does not mean the message will be processed -- if * the looper is quit before the delivery time of the message * occurs then the message will be dropped. */public final boolean sendMessageDelayed(Message msg, long delayMillis){ if (delayMillis < 0) {delayMillis = 0; } return sendMessageAtTime(msg, SystemClock.uptimeMillis() + delayMillis);}

而 sendMessageDelayed 又調用了 sendMessageAtTime（） 方法

/** * Enqueue a message into the message queue after all pending messages * before the absolute time (in milliseconds) <var>uptimeMillis</var>. * <b>The time-base is {@link android.os.SystemClock#uptimeMillis}.</b> * Time spent in deep sleep will add an additional delay to execution. * You will receive it in {@link #handleMessage}, in the thread attached * to this handler. * * @param uptimeMillis The absolute time at which the message should be * delivered, using the * {@link android.os.SystemClock#uptimeMillis} time-base. * * @return Returns true if the message was successfully placed in to the * message queue. Returns false on failure, usually because the * looper processing the message queue is exiting. Note that a * result of true does not mean the message will be processed -- if * the looper is quit before the delivery time of the message * occurs then the message will be dropped. */public boolean sendMessageAtTime(Message msg, long uptimeMillis) { MessageQueue queue = mQueue; if (queue == null) {RuntimeException e = new RuntimeException(this + ' sendMessageAtTime() called with no mQueue');Log.w('Looper', e.getMessage(), e);return false; } return enqueueMessage(queue, msg, uptimeMillis);}

千呼萬喚始出來，在 sendMessageAtTime 這個方法我們終于看到了 MessageQueue 類，這里的邏輯主要向 MessageQueue 中插入了一條消息（Message）。咦？我們不是通過 post 方法傳進來的 Runnable 么？什么時候變成 Message 了？其實剛才我們忽略了一個方法。

public final boolean post(Runnable r){ return sendMessageDelayed(getPostMessage(r), 0);}

沒錯，就是 getPostMessage 方法

private static Message getPostMessage(Runnable r) { Message m = Message.obtain(); m.callback = r; return m;}

從這里看到，系統通過調用 Message.obtain() 創建一個 Message，并把我們通過 post 方法傳進來的 Runnable 賦值給 Message 的 callback。這里的 callback 需要留意，這個在我們之后的分析會用到。接下里我們看 Handler 的 send 方法。

/** * Pushes a message onto the end of the message queue after all pending messages * before the current time. It will be received in {@link #handleMessage}, * in the thread attached to this handler. * * @return Returns true if the message was successfully placed in to the * message queue. Returns false on failure, usually because the * looper processing the message queue is exiting. */public final boolean sendMessage(Message msg){ return sendMessageDelayed(msg, 0);}

是不是很熟悉？post 方法也是調用這個 sendMessageDelayed 方法，這也是為什么我們之前說 post 方法 也是通過 send 方法來執行的。到此為止，我們已經弄懂 Handler 的消息發送過程?？偨Y(jié)的來說，通過 post 方法系統會把 我們傳進來的 Runnable 轉變成 Message，然后就和 send 方法一樣，通過一系列的方法調用之后把 Message 插入到 MessageQueue 當中。至于 Handler 的消息接收過程，我們暫且放一下，先來看 MessageQueue 類。

MessageQueue 類

前面說到，Handler 發送消息的過程就是往 MessageQueue 中插入 一個 Message，即調用 MessageQueue 的 enqueueMessage 方法。首先，我們來看下 MessageQueue 的類結構


我們看到 MessageQueue 是比較簡單的。其實，MessageQueue 主要包含兩個操作：插入和讀取。

插入方法:enqueueMessage

boolean enqueueMessage(Message msg, long when) { if (msg.target == null) {throw new IllegalArgumentException('Message must have a target.'); } if (msg.isInUse()) {throw new IllegalStateException(msg + ' This message is already in use.'); } synchronized (this) {if (mQuitting) { IllegalStateException e = new IllegalStateException( msg.target + ' sending message to a Handler on a dead thread'); Log.w('MessageQueue', e.getMessage(), e); msg.recycle(); return false;}msg.markInUse();msg.when = when;Message p = mMessages;boolean needWake;if (p == null || when == 0 || when < p.when) { // New head, wake up the event queue if blocked. msg.next = p; mMessages = msg; needWake = mBlocked;} else { // Inserted within the middle of the queue. Usually we don’t have to wake // up the event queue unless there is a barrier at the head of the queue // and the message is the earliest asynchronous message in the queue. needWake = mBlocked && p.target == null && msg.isAsynchronous(); Message prev; for (;;) {prev = p;p = p.next;if (p == null || when < p.when) { break;}if (needWake && p.isAsynchronous()) { needWake = false;} } msg.next = p; // invariant: p == prev.next prev.next = msg;}// We can assume mPtr != 0 because mQuitting is false.if (needWake) { nativeWake(mPtr);} } return true;}

讀取方法:next

需要注意的是：讀取操作本身會伴隨著刪除操作

Message next() { // Return here if the message loop has already quit and been disposed. // This can happen if the application tries to restart a looper after quit // which is not supported. final long ptr = mPtr; if (ptr == 0) {return null; } int pendingIdleHandlerCount = -1; // -1 only during first iteration int nextPollTimeoutMillis = 0; for (;;) {if (nextPollTimeoutMillis != 0) { Binder.flushPendingCommands();}nativePollOnce(ptr, nextPollTimeoutMillis);synchronized (this) { // Try to retrieve the next message. Return if found. final long now = SystemClock.uptimeMillis(); Message prevMsg = null; Message msg = mMessages; if (msg != null && msg.target == null) {// Stalled by a barrier. Find the next asynchronous message in the queue.do { prevMsg = msg; msg = msg.next;} while (msg != null && !msg.isAsynchronous()); } if (msg != null) {if (now < msg.when) { // Next message is not ready. Set a timeout to wake up when it is ready. nextPollTimeoutMillis = (int) Math.min(msg.when - now, Integer.MAX_VALUE);} else { // Got a message. mBlocked = false; if (prevMsg != null) {prevMsg.next = msg.next; } else {mMessages = msg.next; } msg.next = null; if (false) Log.v('MessageQueue', 'Returning message: ' + msg); return msg;} } else {// No more messages.nextPollTimeoutMillis = -1; } // Process the quit message now that all pending messages have been handled. if (mQuitting) {dispose();return null; } // If first time idle, then get the number of idlers to run. // Idle handles only run if the queue is empty or if the first message // in the queue (possibly a barrier) is due to be handled in the future. if (pendingIdleHandlerCount < 0 && (mMessages == null || now < mMessages.when)) {pendingIdleHandlerCount = mIdleHandlers.size(); } if (pendingIdleHandlerCount <= 0) {// No idle handlers to run. Loop and wait some more.mBlocked = true;continue; } if (mPendingIdleHandlers == null) {mPendingIdleHandlers = new IdleHandler[Math.max(pendingIdleHandlerCount, 4)]; } mPendingIdleHandlers = mIdleHandlers.toArray(mPendingIdleHandlers);}// Run the idle handlers.// We only ever reach this code block during the first iteration.for (int i = 0; i < pendingIdleHandlerCount; i++) { final IdleHandler idler = mPendingIdleHandlers[i]; mPendingIdleHandlers[i] = null; // release the reference to the handler boolean keep = false; try {keep = idler.queueIdle(); } catch (Throwable t) {Log.wtf('MessageQueue', 'IdleHandler threw exception', t); } if (!keep) {synchronized (this) { mIdleHandlers.remove(idler);} }}// Reset the idle handler count to 0 so we do not run them again.pendingIdleHandlerCount = 0;// While calling an idle handler, a new message could have been delivered// so go back and look again for a pending message without waiting.nextPollTimeoutMillis = 0; }}Looper 類

首先，我們也來看下 Looper 的類結構


關于 Looper ，我們首先要明確一點，Looper 是線程相關的，即每個線程的 Looper 是不一樣的，但是線程默認是沒有 Looper 的?？赡軙?huì)有點繞，要理清這里面的邏輯的關系，我們首先要了解 ThreadLocal，關于 ThreadLocal 網上的資料挺多的。簡單地來說，ThreadLocal 是一個線程內部的數據存儲類，比如有有一個 int 類型的 x，在線程 A 的值是 1，在線程 B 的值可以是 0,1，2,..,在線程 C 的值可以是 0,1,2... 我們來看下 Looper 相關的源碼

// sThreadLocal.get() will return null unless you’ve called prepare().static final ThreadLocal<Looper> sThreadLocal = new ThreadLocal<Looper>();private static void prepare(boolean quitAllowed) { if (sThreadLocal.get() != null) {throw new RuntimeException('Only one Looper may be created per thread'); } sThreadLocal.set(new Looper(quitAllowed));}/** * Return the Looper object associated with the current thread. Returns * null if the calling thread is not associated with a Looper. */public static Looper myLooper() { return sThreadLocal.get();}

我們?yōu)槭裁匆鞔_ Looper 是線程相關的呢？因?yàn)?Handler 創建的時候會采用當前線程的 Looper 來構造消息循環系統的。Handler 創建的時候要先創建 Looper，這時候疑問就來了？我們平常創建 Handler 的時候直接就創建了啊，沒有創建什么 Looper 啊。這是因?yàn)槲覀兺ǔＪ窃谥骶€程 ActivityThread 中創建 Handler。我們看到 Loop 類中有個 prepareMainLooper 方法。

/** * Initialize the current thread as a looper, marking it as an * application’s main looper. The main looper for your application * is created by the Android environment, so you should never need * to call this function yourself. See also: {@link #prepare()} */public static void prepareMainLooper() { prepare(false); synchronized (Looper.class) {if (sMainLooper != null) { throw new IllegalStateException('The main Looper has already been prepared.');}sMainLooper = myLooper(); }}

主線程在創建時，就會調用這個方法創建 Looper。但是如果我們?cè)谧泳€程（如下代碼）直接創建 Handler 就會拋出異常

new Thread(new Runnable() { @Override public void run() {//Looper.prepare();Handler handler = new Handler(); // Looper.loop(); }}).start();

這時只要我們把注釋去掉就不會報異常了。通過源碼我們知道 Looper.prepare() 主要是為當前線程一個 Looper 對象。

/** Initialize the current thread as a looper. * This gives you a chance to create handlers that then reference * this looper, before actually starting the loop. Be sure to call * {@link #loop()} after calling this method, and end it by calling * {@link #quit()}. */public static void prepare() { prepare(true);}private static void prepare(boolean quitAllowed) { if (sThreadLocal.get() != null) {throw new RuntimeException('Only one Looper may be created per thread'); } sThreadLocal.set(new Looper(quitAllowed));}

那么，Looper.loop（）方法是干什么的呢？其實，Looper 最重要的一個方法就是 loop 方法了。只有調用 loop 后，消息系統才會真正地起作用。我們來看 loop 方法

/** * Run the message queue in this thread. Be sure to call * {@link #quit()} to end the loop. */public static void loop() { final Looper me = myLooper(); if (me == null) {throw new RuntimeException('No Looper; Looper.prepare() wasn’t called on this thread.'); } final MessageQueue queue = me.mQueue; // Make sure the identity of this thread is that of the local process, // and keep track of what that identity token actually is. Binder.clearCallingIdentity(); final long ident = Binder.clearCallingIdentity(); for (;;) {Message msg = queue.next(); // might blockif (msg == null) { // No message indicates that the message queue is quitting. return;}// This must be in a local variable, in case a UI event sets the loggerPrinter logging = me.mLogging;if (logging != null) { logging.println('>>>>> Dispatching to ' + msg.target + ' ' + msg.callback + ': ' + msg.what);}msg.target.dispatchMessage(msg);if (logging != null) { logging.println('<<<<< Finished to ' + msg.target + ' ' + msg.callback);}// Make sure that during the course of dispatching the// identity of the thread wasn’t corrupted.final long newIdent = Binder.clearCallingIdentity();if (ident != newIdent) { Log.wtf(TAG, 'Thread identity changed from 0x' + Long.toHexString(ident) + ' to 0x' + Long.toHexString(newIdent) + ' while dispatching to ' + msg.target.getClass().getName() + ' ' + msg.callback + ' what=' + msg.what);}msg.recycleUnchecked(); }}

我們可以看到 loop 方法是一個死循環，在這個死循環方法里面會調用 MessageQueue 的 next 方法來獲取新消息。但是如果 next 方法返回了 null，loop 就退出循環。這種情況發生在 Loop 的 quit 方法被調用時，Looper 會 調用 MessageQueue 的 quit 方法來通知消息隊列退出，當消息隊列被標記退出狀態時，它的 next 方法就會返回 null。由于 next 是一個阻塞方法，所以 loop 也會一直阻塞在那里，如果有消息到來， msg.target.dispatchMessage(msg)。這個 msg.target 就是發送這個消息的 Handler 對象啦。這樣 Handler 發送的消息最終又交給自己的 dispatchMessage 方法來處理了。因?yàn)?Handler 的 dispatchMessage 方法是創建 Handler 時使用的 Looper 中執行的，這樣就成功地完成線程切換了。

Handler 的消息接收過程

經過跋山涉水，通過 Handler 發送的消息最終又會回到自己的 diapatchMessage 中來，那就讓我們來看下 diapatchMessage 方法。

/** * Handle system messages here. */public void dispatchMessage(Message msg) { if (msg.callback != null) {handleCallback(msg); } else {if (mCallback != null) { if (mCallback.handleMessage(msg)) {return; }}handleMessage(msg); }}

首先，檢查 Messgae 的 callback 是否為 null，不為 null 就調用 handleCallback 方法，這個 Message 的 callback 就是我們之前post的。其次，檢查 mCallback 是否為 null ，不為 null 就調用 mCallback 的 handleMessage 方法來處理消息。如果我們是通過繼承 Handler 來實現邏輯的話，此時的mCallback 是為空的，即會調用 handleMessage(msg)，也就是我們重寫的 handleMessage 方法。至此，完成了完美的閉環。

有的同學可能會疑問 mCallback 是什么？什么時候會為空？

/** * Callback interface you can use when instantiating a Handler to avoid * having to implement your own subclass of Handler. * * @param msg A {@link android.os.Message Message} object * @return True if no further handling is desired */public interface Callback { public boolean handleMessage(Message msg);} /** * Constructor associates this handler with the {@link Looper} for the * current thread and takes a callback interface in which you can handle * messages. * * If this thread does not have a looper, this handler won’t be able to receive messages * so an exception is thrown. * * @param callback The callback interface in which to handle messages, or null. */public Handler(Callback callback) { this(callback, false);}

通過源碼可以看出，我們也可以采用 Handler handler = new Handler(callback) 來創建 Handler，這時dispatchMessage 里面就會走 mCallback 不為空的邏輯。
