鑒于隔很久再在IDEA新建springboot項目時，會出現對步驟不確定的情況，因此，寫下這篇博客記錄創建一個可運行的springboot+mybatis項目的全過程。

步驟如下：

1.打開IDEA

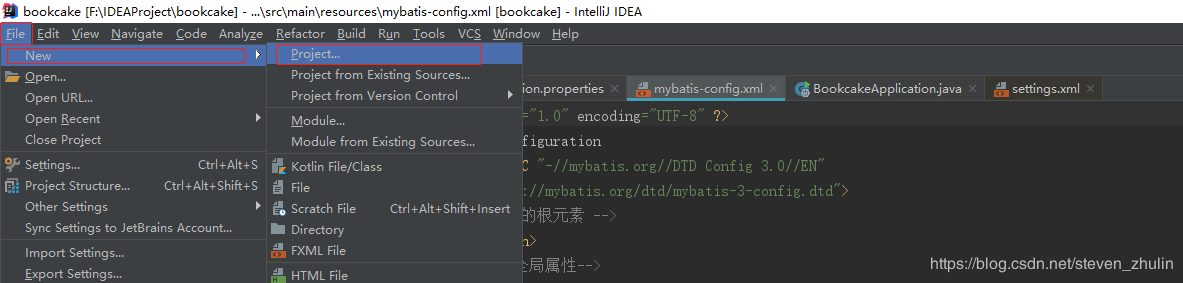

2.File ==> new ==> project ,如圖：

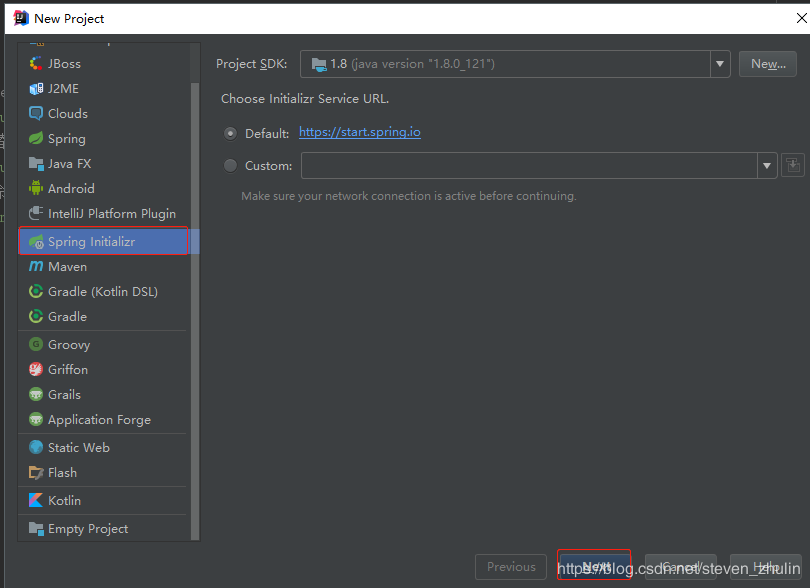

3.選擇spring Initializr ==> 右邊的Project SDK我選的是我已經安裝的1.8版本,其他默認 ==> 點擊next

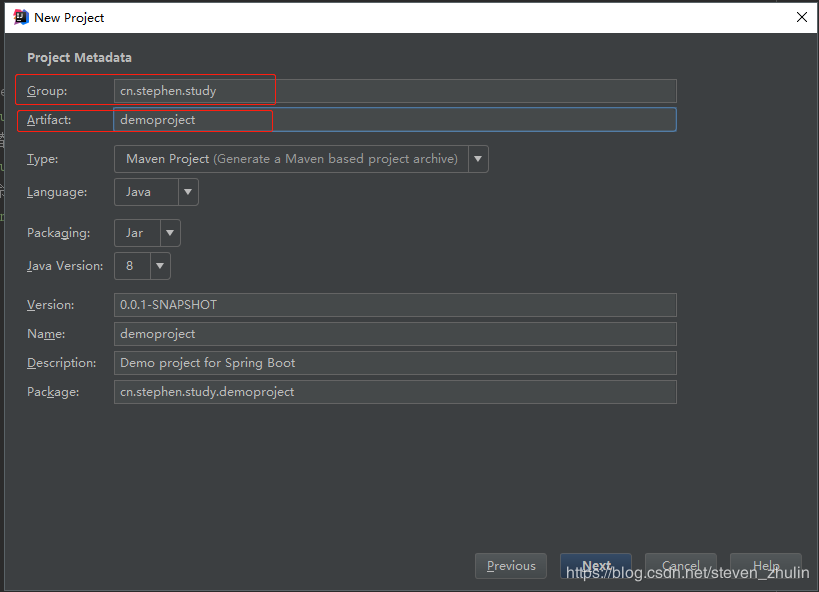

4.填寫Group （自己隨意就行，我的是cn + 個人英文名 + study） ==> 填寫 Artifact （也是自己隨意就行，這個也是你的項目名） ==> 點擊next ，如圖：

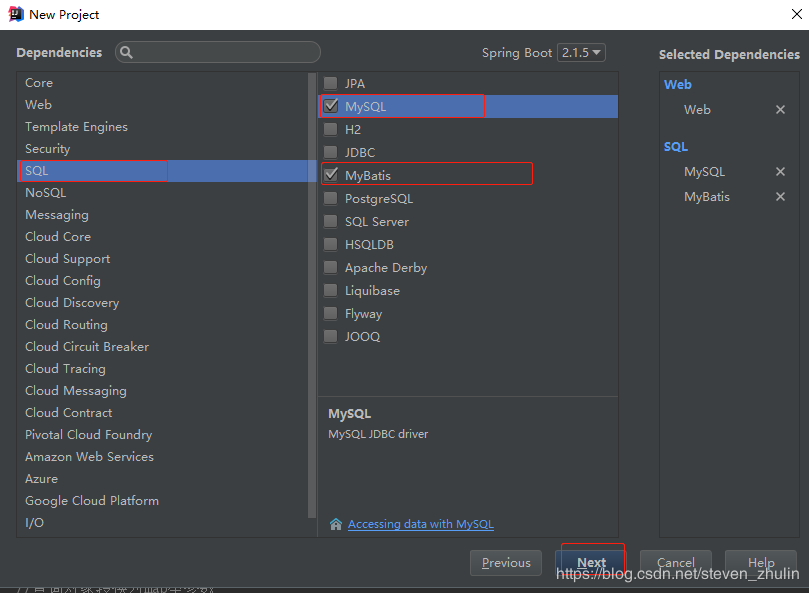

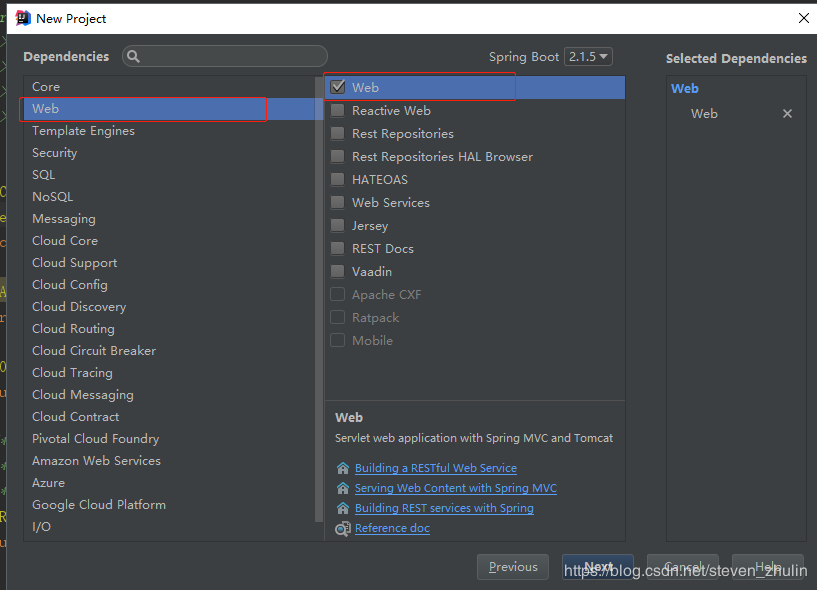

5.選擇項目所需依賴（由于項目是springboot+mybatis的Java后臺項目，因此需要勾上三個依賴） ==> 點擊next ，如圖：

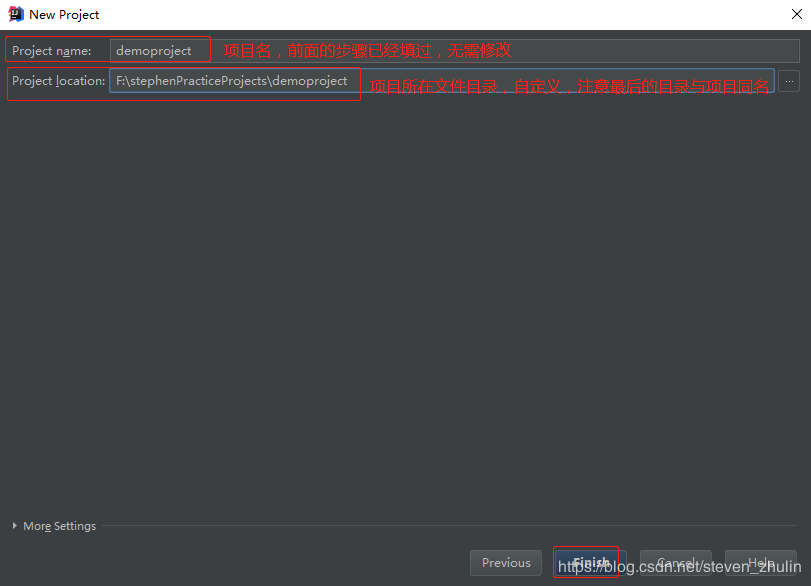

6.選擇項目路徑 ==> 點擊finish ,如圖：

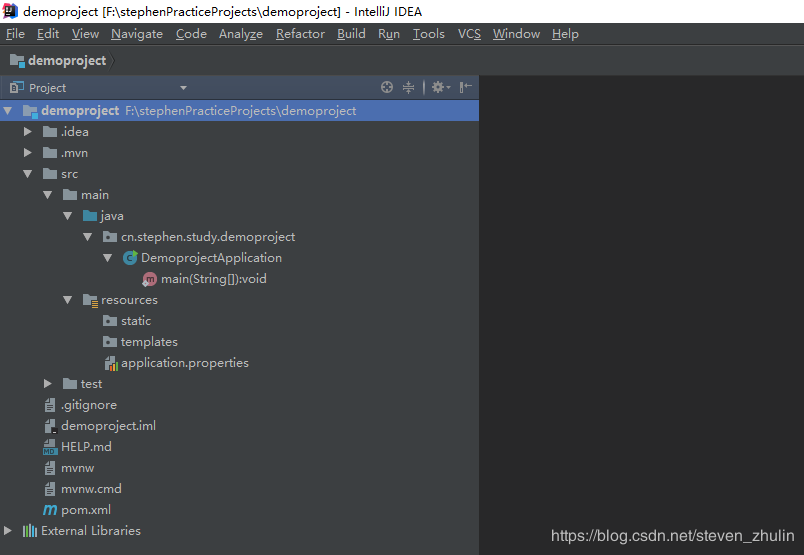

6.最終生成的項目代碼目錄如圖（resources目錄下的static和templates目錄無用，可以刪掉）：

（注：如果DemoprojectApplication類(即啟動類)的圖標顯示是 J 而不是 C ，則說名該項目還沒有被初始化為maven項目，

只需要在項目的pom.xml文件上右鍵，再選擇 Add as maven 即可）

至此，springboot項目搭建完成一半，還需要做mybatis的配置，如下：

7.數據庫和mybatis的配置

7.1 在application.properties填入數據庫連接參數和mybatis配置信息，application.properties內容如下：

#1.項目啟動的端口server.port=18902 #2.數據庫連接參數#2.1jdbc驅動，示數據庫廠商決定，這是mysql的驅動jdbc.driver=com.mysql.cj.jdbc.Driver#2.2數據庫連接url，包括ip(127.0.0.1)、端口(3306)、數據庫名jdbc.url=jdbc:mysql://127.0.0.1:3306/testdb?useUnicode=true&characterEncoding=utf-8&useSSL=false#2.3數據庫賬號名jdbc.username=root#2.4數據庫密碼jdbc.password=mypassword #3.Mybatis配置#3.1 mybatis配置文件所在路徑mybatis_config_file=mybatis-config.xml#3.2 mapper文件所在路徑，這樣寫可匹配mapper目錄下的所有mapper，包括其子目錄下的mapper_path=/mapper/**/**.xml#3.3 entity所在包entity_package=cn.stephen.study.demoproject.entity

示例如圖：

7.2 在resources目錄下新建 mybatis-config.xml文件，文件內容如下：

<?xml version='1.0' encoding='UTF-8' ?><!DOCTYPE configuration PUBLIC '-//mybatis.org//DTD Config 3.0//EN' 'http://mybatis.org/dtd/mybatis-3-config.dtd'><!-- 配置文件的根元素 --><configuration> <!--配置全局屬性--> <settings> <!--使用jdbc的getGeneratedKeys獲取數據庫自增主鍵值--> <setting name='useGeneratedKeys' value='true'/> <!--使用列標簽替換列別名 默認未true--> <setting name='useColumnLabel' value='true' /> <!--開啟駝峰式命名轉換：Table{create_time} -> Entity{createTime}--> <setting name='mapUnderscoreToCamelCase' value='true' /> </settings></configuration>

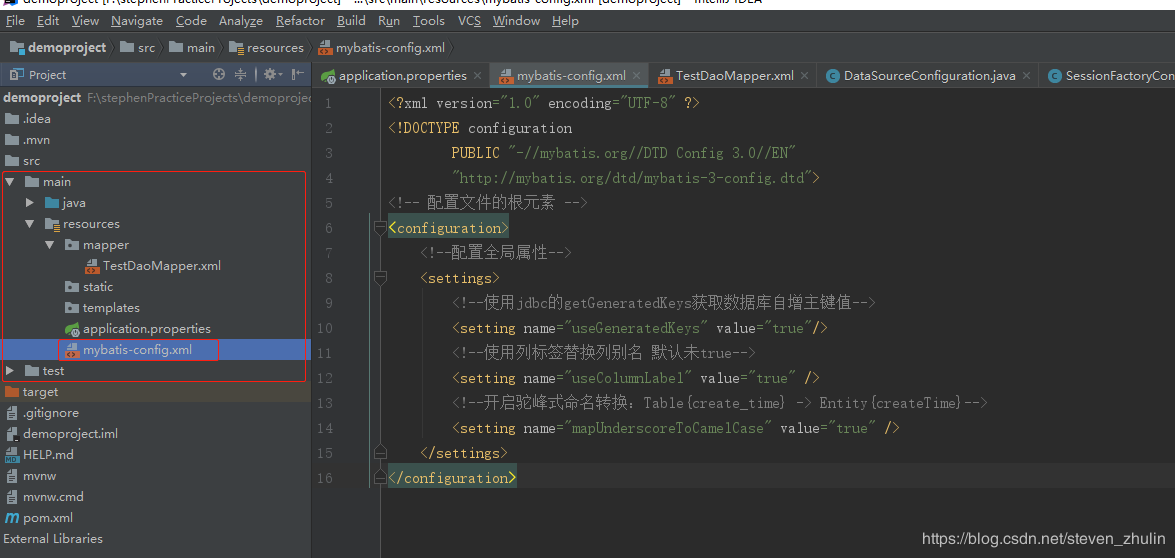

效果如圖：

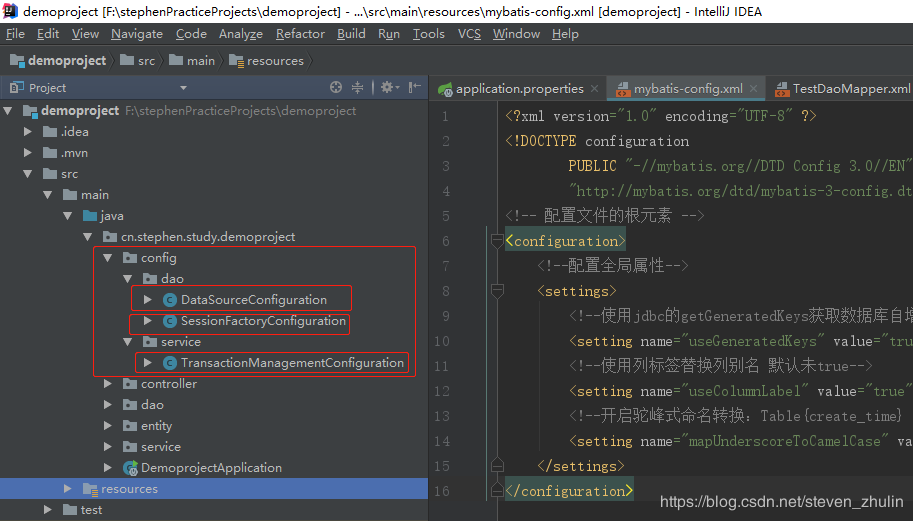

7.3 新建 config包，在其中新建配置類。共三個配置類，如圖：

DataSourceConfiguration類的代碼如下：

package cn.stephen.study.demoproject.config.dao; import com.mchange.v2.c3p0.ComboPooledDataSource;import org.springframework.beans.factory.annotation.Value;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration; import java.beans.PropertyVetoException; /** * 數據庫配置類 */@Configurationpublic class DataSourceConfiguration { @Value('${jdbc.driver}') private String jdbcDriver; @Value('${jdbc.url}') private String jdbcUrl; @Value('${jdbc.username}') private String jdbcUsername; @Value('${jdbc.password}') private String jdbcPassword; @Bean(name = 'dataSouce') public ComboPooledDataSource createDataSouce() throws PropertyVetoException { ComboPooledDataSource dataSource = new ComboPooledDataSource(); dataSource.setDriverClass(jdbcDriver); dataSource.setJdbcUrl(jdbcUrl); dataSource.setUser(jdbcUsername); dataSource.setPassword(jdbcPassword); //關閉連接后不自動commit dataSource.setAutoCommitOnClose(false); return dataSource; }}

SessionFactoryConfiguration類的代碼如下：

package cn.stephen.study.demoproject.config.dao; import org.mybatis.spring.SqlSessionFactoryBean;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.beans.factory.annotation.Value;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;import org.springframework.core.io.ClassPathResource;import org.springframework.core.io.support.PathMatchingResourcePatternResolver; import javax.sql.DataSource;import java.io.IOException; /** * 數據庫sqlSession配置類 */ @Configurationpublic class SessionFactoryConfiguration { @Value('${mapper_path}') private String mapperPath; @Value('${mybatis_config_file}') private String mybatisConfigFilePath; @Autowired private DataSource dataSouce; @Value('${entity_package}') private String entityPackage; @Bean(name='sqlSessionFactory') public SqlSessionFactoryBean createSqlSessionFactoryBean() throws IOException { SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean(); sqlSessionFactoryBean.setConfigLocation(new ClassPathResource(mybatisConfigFilePath)); PathMatchingResourcePatternResolver resolver = new PathMatchingResourcePatternResolver(); String packageSearchPath = PathMatchingResourcePatternResolver.CLASSPATH_ALL_URL_PREFIX+mapperPath; sqlSessionFactoryBean.setMapperLocations(resolver.getResources(packageSearchPath)); sqlSessionFactoryBean.setDataSource(dataSouce); sqlSessionFactoryBean.setTypeAliasesPackage(entityPackage); return sqlSessionFactoryBean; }}

TransactionManagementConfiguration類的代碼如下：

package cn.stephen.study.demoproject.config.service; import org.springframework.beans.factory.annotation.Autowired;import org.springframework.context.annotation.Configuration;import org.springframework.jdbc.datasource.DataSourceTransactionManager;import org.springframework.transaction.PlatformTransactionManager;import org.springframework.transaction.annotation.EnableTransactionManagement;import org.springframework.transaction.annotation.TransactionManagementConfigurer; import javax.sql.DataSource; /** * 事務配置類，不可缺少，尚未知具體作用 */@Configuration@EnableTransactionManagementpublic class TransactionManagementConfiguration implements TransactionManagementConfigurer{ @Autowired private DataSource dataSource; @Override public PlatformTransactionManager annotationDrivenTransactionManager() { return new DataSourceTransactionManager(dataSource); }}

三個類的代碼寫完后，在DataSourceConfiguration類中會報找不到某些類的錯，在下一步解決。

7.4 在 pom.xml文件的<dependencies></dependencies>插入以下兩個依賴

<!--線程池--><dependency> <groupId>com.mchange</groupId> <artifactId>c3p0</artifactId> <version>0.9.5.2</version></dependency><dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <optional>true</optional></dependency>

至此，項目配置已完成。。。。

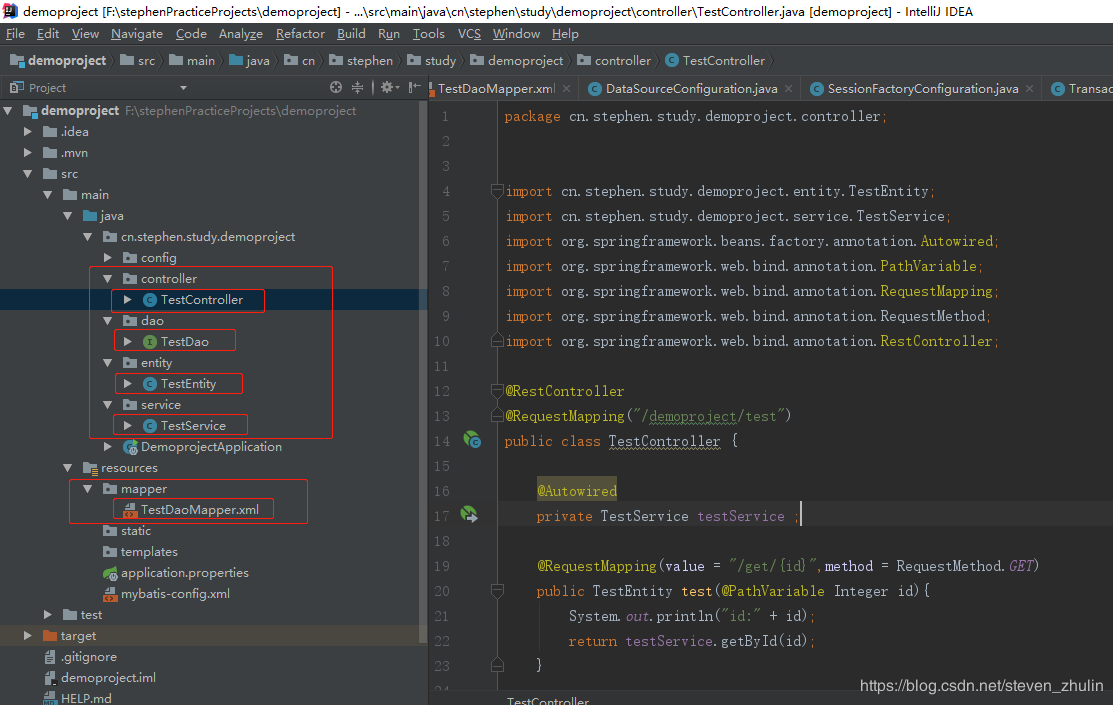

8. 接下來，就按最普遍的分層代碼目錄結構來寫一個基本的測試來測試項目是否能正常運行。代碼目錄結果如圖：

一共需要新建4個包（controller、service、dao、entity）和一個目錄;

8.1 controller包放控制層代碼，TestController類的代碼如下：

package cn.stephen.study.demoproject.controller; import cn.stephen.study.demoproject.entity.TestEntity;import cn.stephen.study.demoproject.service.TestService;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.web.bind.annotation.PathVariable;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RequestMethod;import org.springframework.web.bind.annotation.RestController; @RestController@RequestMapping('/demoproject/test')public class TestController { @Autowired private TestService testService ; @RequestMapping(value = '/get/{id}',method = RequestMethod.GET) public TestEntity test(@PathVariable Integer id){ System.out.println('id:' + id); return testService.getById(id); } }

8.2 service層放業務處理層代碼，TestService類的代碼如下：

package cn.stephen.study.demoproject.service; import cn.stephen.study.demoproject.dao.TestDao;import cn.stephen.study.demoproject.entity.TestEntity;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Service; @Servicepublic class TestService { @Autowired private TestDao testDao ; public TestEntity getById(Integer id){ return testDao.getById(id); }}

8.3 dao包放數據存取層代碼，TestDao代碼如下：

package cn.stephen.study.demoproject.dao; import cn.stephen.study.demoproject.entity.TestEntity;import org.apache.ibatis.annotations.Mapper; @Mapperpublic interface TestDao { TestEntity getById(Integer id); }

8.4 entity包放數據庫表對應的實體類，TestEntity實體類代碼如下：

package cn.stephen.study.demoproject.entity; public class TestEntity { protected Integer id ; protected String magicId ; protected String firstName ; protected String lastName ; public Integer getId() { return id; } public void setId(Integer id) { this.id = id; } public String getMagicId() { return magicId; } public void setMagicId(String magicId) { this.magicId = magicId; } public String getFirstName() { return firstName; } public void setFirstName(String firstName) { this.firstName = firstName; } public String getLastName() { return lastName; } public void setLastName(String lastName) { this.lastName = lastName; }}

對應的數據庫表的sql語句如下：

CREATE TABLE `test` ( `id` int(11) unsigned NOT NULL AUTO_INCREMENT, `magic_id` varchar(32) NOT NULL, `first_name` varchar(32) NOT NULL, `last_name` varchar(32) NOT NULL, PRIMARY KEY (`id`)) ENGINE=InnoDB AUTO_INCREMENT=11 DEFAULT CHARSET=utf8;

8.5 mapper目錄放dao層代碼的具體實現（這是mybatis的特色，用xml文件來實現數據存取），TestDaoMapper的內容如下：

<?xml version='1.0' encoding='UTF-8' ?><!DOCTYPE mapper PUBLIC '-//mybatis.org//DTD Mapper 3.0//EN' 'http://mybatis.org/dtd/mybatis-3-mapper.dtd' ><mapper namespace='cn.stephen.study.demoproject.dao.TestDao'> <!-- 根據主鍵查詢--> <select resultType='cn.stephen.study.demoproject.entity.TestEntity' parameterType='java.lang.Integer' > select * from test where id = #{id} </select></mapper>

測試代碼寫完，就可以打開postman去做測試了。

（注：搜索 postman下載 即可在官網上下載postman軟件）

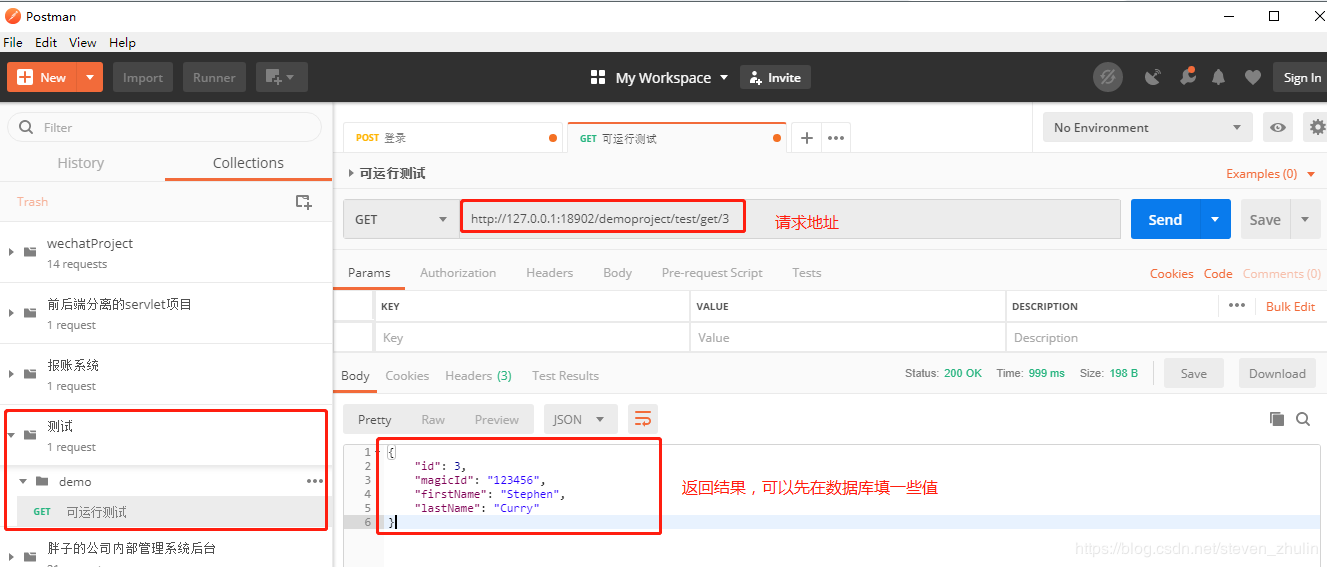

測試結果如圖：

9.結束語：

至此，搭建springboot + mybatis 的Java后臺項目已經結束。。

附上該項目示例的github地址：https://github.com/StephenChen1/demoproject.git
