iview-admin中提供了 v-org-tree 這么一個vue組件可以實現樹形菜單，下面小編來提供一下在element-ui中的使用教程（項目見：https://github.com/lison16/v-org-tree）

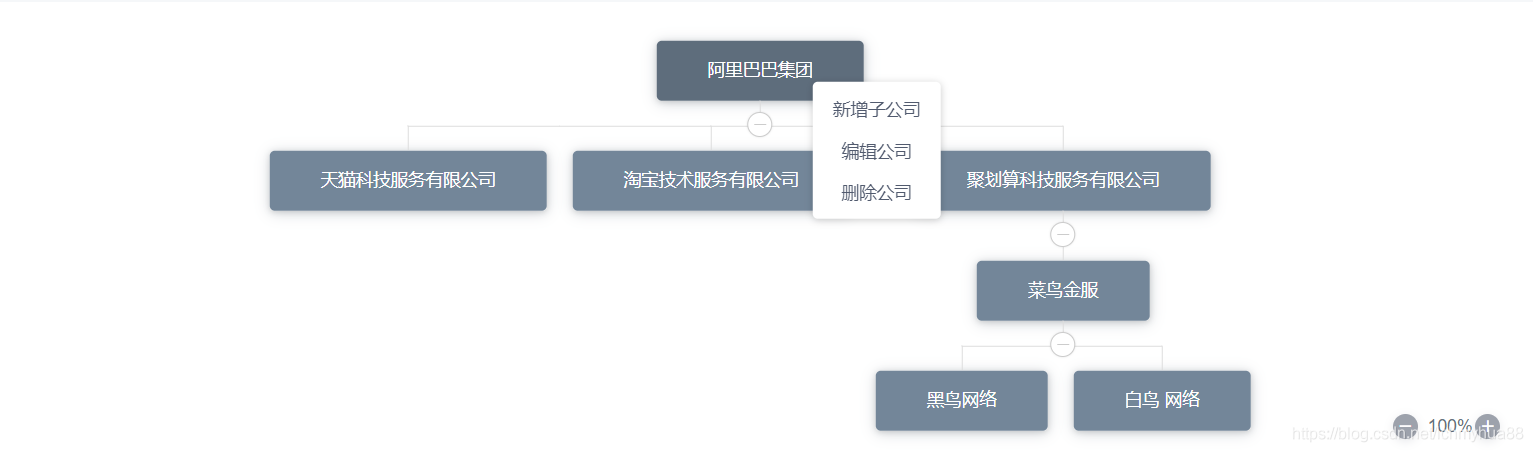

小編集成了el-dropdown下拉菜單（鼠標左擊顯示菜單），和右擊自定義菜單，兩種方式，效果圖如下：

（1）安裝依賴

npm install clipboardnpm install v-click-outside-xnpm install v-org-tree

（2）引入組件

在main.js文件中引入

import TreeTable from ’tree-table-vue’import VOrgTree from ’v-org-tree’

（3）引入部分js工具方法

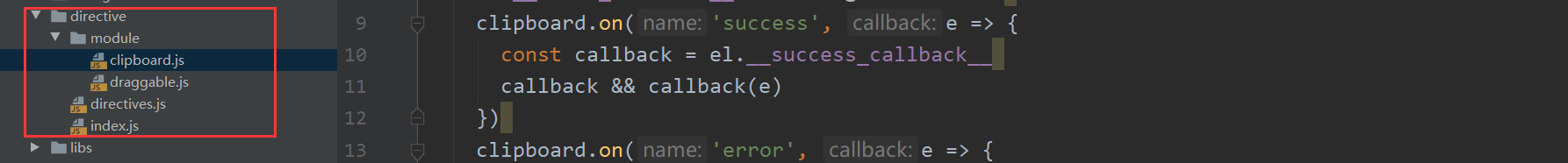

在項目目錄下 -> src -> directive文件夾中引入如下4個js文件

clipboard.js

import Clipboard from ’clipboard’export default { bind: (el, binding) => { const clipboard = new Clipboard(el, { text: () => binding.value.value }) el.__success_callback__ = binding.value.success el.__error_callback__ = binding.value.error clipboard.on(’success’, e => { const callback = el.__success_callback__ callback && callback(e) }) clipboard.on(’error’, e => { const callback = el.__error_callback__ callback && callback(e) }) el.__clipboard__ = clipboard }, update: (el, binding) => { el.__clipboard__.text = () => binding.value.value el.__success_callback__ = binding.value.success el.__error_callback__ = binding.value.error }, unbind: (el, binding) => { delete el.__success_callback__ delete el.__error_callback__ el.__clipboard__.destroy() delete el.__clipboard__ }}

draggable.js

import { on } from ’@/libs/tools’export default { inserted: (el, binding, vnode) => { const triggerDom = document.querySelector(binding.value.trigger) triggerDom.style.cursor = ’move’ const bodyDom = document.querySelector(binding.value.body) let pageX = 0 let pageY = 0 let transformX = 0 let transformY = 0 let canMove = false const handleMousedown = e => { let transform = /(.*)/.exec(bodyDom.style.transform) if (transform) {transform = transform[0].slice(1, transform[0].length - 1)const splitxy = transform.split(’px, ’)transformX = parseFloat(splitxy[0])transformY = parseFloat(splitxy[1].split(’px’)[0]) } pageX = e.pageX pageY = e.pageY canMove = true } const handleMousemove = e => { const xOffset = e.pageX - pageX + transformX const yOffset = e.pageY - pageY + transformY if (canMove) bodyDom.style.transform = `translate(${xOffset}px, ${yOffset}px)` } const handleMouseup = e => { canMove = false } on(triggerDom, ’mousedown’, handleMousedown) on(document, ’mousemove’, handleMousemove) on(document, ’mouseup’, handleMouseup) }, update: (el, binding, vnode) => { if (!binding.value.recover) return const bodyDom = document.querySelector(binding.value.body) bodyDom.style.transform = ’’ }}

directives.js

import draggable from ’./module/draggable’import clipboard from ’./module/clipboard’ const directives = { draggable, clipboard} export default directives

index.js

import directive from ’./directives’ const importDirective = Vue => { /** * 拖拽指令 v-draggable='options' * options = { * trigger: /這里傳入作為拖拽觸發器的CSS選擇器/, * body: /這里傳入需要移動容器的CSS選擇器/, * recover: /拖動結束之后是否恢復到原來的位置/ * } */ Vue.directive(’draggable’, directive.draggable) /** * clipboard指令 v-draggable='options' * options = { * value: /在輸入框中使用v-model綁定的值/, * success: /復制成功后的回調/, * error: /復制失敗后的回調/ * } */ Vue.directive(’clipboard’, directive.clipboard)} export default importDirective

（4）正式使用v-org-tree組件

在所要使用的地方新增如下幾個文件，比如我要寫在user-group文件夾中

項目srccomponentsorg-view下面建立二個文件:

index.js

import OrgView from ’./org-view.vue’export default OrgView

org-view.vue

<template> <div ref='dragWrapper' @mousedown='mousedownView' @contextmenu='handleDocumentContextmenu' > <div :style='orgTreeStyle'> <v-org-treev-if='data':data='data':node-render='nodeRender':expand-all='true'@on-node-click='handleNodeClick'collapsable ></v-org-tree> </div> </div></template> <script>import { on, off } from ’@/directive/module/tools’ export default { name: ’OrgView’, props: { zoomHandled: { type: Number, default: 1 }, data: Object, menuList: { type: Array, default: function () {return [ { key: ’edit’, label: ’編輯公司’ }, { key: ’detail’, label: ’查看公司’ }, { key: ’add’, label: ’新增子公司’ }, { key: ’delete’, label: ’刪除公司’ }] } } }, data () { return { currentContextMenuId: ’’, orgTreeOffsetLeft: 0, orgTreeOffsetTop: 0, initPageX: 0, initPageY: 0, oldMarginLeft: 0, oldMarginTop: 0, canMove: false } }, computed: { orgTreeStyle () { return {transform: `translate(-50%, -50%) scale(${this.zoomHandled}, ${ this.zoomHandled})`,marginLeft: `${this.orgTreeOffsetLeft}px`,marginTop: `${this.orgTreeOffsetTop}px` } } }, methods: { handleNodeClick (e, data, expand) { expand() }, closeMenu () { this.currentContextMenuId = ’’ }, getBgColor (data) { return this.currentContextMenuId === data.id? data.isRoot ? ’#0d7fe8’ : ’#5d6c7b’: ’’ }, nodeRender (h, data) { return (<div class={[ ’custom-org-node’, data.children && data.children.length ? ’has-children-label’ : ’’ ]} on-mousedown={event => event.stopPropagation()} on-contextmenu={this.contextmenu.bind(this, data)}> {data.label} <dropdown trigger='custom' visible={this.currentContextMenuId === data.id} nativeOn-click={this.handleDropdownClick} on-on-click={this.handleContextMenuClick.bind(this, data)} style={{ transform: `scale(${1 / this.zoomHandled}, ${1 /this.zoomHandled})` }} v-click-outside={this.closeMenu} > <dropdown-menu slot='list'> {this.menuList.map(item => {return ( <dropdown-item name={item.key}>{item.label}</dropdown-item>) })} </dropdown-menu> </dropdown></div> ) }, contextmenu (data, $event) { const event = $event || window.event event.preventDefault? event.preventDefault(): (event.returnValue = false) this.currentContextMenuId = data.id }, setDepartmentData (data) { data.isRoot = true this.departmentData = data }, mousedownView (event) { this.canMove = true this.initPageX = event.pageX this.initPageY = event.pageY this.oldMarginLeft = this.orgTreeOffsetLeft this.oldMarginTop = this.orgTreeOffsetTop on(document, ’mousemove’, this.mousemoveView) on(document, ’mouseup’, this.mouseupView) }, mousemoveView (event) { if (!this.canMove) return const { pageX, pageY } = event this.orgTreeOffsetLeft = this.oldMarginLeft + pageX - this.initPageX this.orgTreeOffsetTop = this.oldMarginTop + pageY - this.initPageY }, mouseupView () { this.canMove = false off(document, ’mousemove’, this.mousemoveView) off(document, ’mouseup’, this.mouseupView) }, handleDropdownClick (event) { event.stopPropagation() }, handleDocumentContextmenu () { this.canMove = false }, handleContextMenuClick (data, key) { this.$emit(’on-menu-click’, { data, key }) } }, mounted () { on(document, ’contextmenu’, this.handleDocumentContextmenu) }, beforeDestroy () { off(document, ’contextmenu’, this.handleDocumentContextmenu) }}</script> <style></style>

項目srccomponentszoom-controller下面建立二個文件:

index.js

import ZoomController from ’./zoom-controller’export default ZoomController

zoom-controller.vue

<template> <div class='zoom-wrapper'> <button @click='scale(’down’)'> <Icon type='md-remove' :size='14' color='#fff'/> </button> <span class='zoom-number'>{{ value }}%</span> <button @click='scale(’up’)'> <Icon type='md-add' :size='14' color='#fff'/> </button> </div></template> <script>export default { name: ’ZoomController’, props: { value: { type: Number, default: 100 }, step: { type: Number, default: 20 }, min: { type: Number, default: 10 }, max: { type: Number, default: 200 } }, methods: { scale (type) { const zoom = this.value + (type === ’down’ ? -this.step : this.step) if ((zoom < this.min && type === ’down’) ||(zoom > this.max && type === ’up’) ) {return } this.$emit(’input’, zoom) } }}</script> <style lang='less'>.trans(@duration) { transition: ~'all @{duration} ease-in';}.zoom-wrapper { .zoom-button { width: 20px; height: 20px; line-height: 10px; border-radius: 50%; background: rgba(157, 162, 172, 1); box-shadow: 0px 2px 8px 0px rgba(218, 220, 223, 0.7); border: none; cursor: pointer; outline: none; &:active { box-shadow: 0px 0px 2px 2px rgba(218, 220, 223, 0.2) inset; } .trans(0.1s); &:hover { background: #1890ff; .trans(0.1s); } } .zoom-number { color: #657180; padding: 0 8px; display: inline-block; width: 46px; text-align: center; }}</style>

項目srcview下面建立org.vue文件

<template> <Card shadow style='height: 100%;width: 100%;overflow:hidden'> <div class='department-outer'> <div class='zoom-box'><zoom-controller v-model='zoom' :min='20' :max='200'></zoom-controller> </div> <div class='view-box'><org-view v-if='data' :data='data' :zoom-handled='zoomHandled' :menuList='menuList' @on-menu-click='handleMenuClick'></org-view> </div> </div> </Card></template> <script>import { orgList } from ’@/api/org’import { layerDialog } from ’@/libs/Diaglog’import ’./org.less’ const OrgView = Vue.component(’OrgView’, function (resolve) { require([’/user/org-view’], resolve)})const ZoomController = Vue.component(’ZoomController’, function (resolve) { require([’/user/zoom-controller’], resolve)})export default { name: ’org_tree_page’, components: { OrgView, ZoomController }, data () { return { data: null, zoom: 100, menuList: [{ key: ’add’, label: ’新增子公司’},{ key: ’edit’, label: ’編輯公司’},{ key: ’delete’, label: ’刪除公司’} ] } }, computed: { zoomHandled () { return this.zoom / 100 } }, methods: { setDepartmentData (data) { data.isRoot = true return data }, handleMenuClick ({ data, key }) { switch (key) {case ’add’:case ’edit’: console.log(data) this.showDialog(data, key) breakcase ’delete’: break } }, showDialog (data, key) { data.key = key const option = {id: key + ’SaveDialog’,title: this.$i18n.t(key),width: ’600px’,height: ’550px’,url: ’/api/org/’ + Qs.stringify(data, { arrayFormat: ’brackets’ }) } layerDialog(option) }, getDepartmentData () { const entity = {} const levels = ’0,1,2,3,4,5,6’ entity.status = 1 getOrgList(entity, 1, 20, levels).then(result => {if (result.data.code === 10000) { let len = 0 const list = result.data.data.list if (list) { len = list.length } var data = { id: 0, label: ’阿里巴巴集團’, level: 0 } if (len > 0) { data.children = this.formatData(list, 1, 0) } this.data = data} }) }, formatData (list, level, pid, pname) { const childrenData = [] for (let i = 0; i < list.length; i++) {const data = {}const item = list[i]if (level === item.level) { data.id = item.id data.label = item.name data.parentName = pname data.level = item.level data.children = this.formatData(list, level + 1, item.id, item.name) childrenData.push(data)} } return childrenData } }, mounted () { this.getDepartmentData() }}</script>

接口中核心代碼：

List<Station> stations = stationService.listByEntity(station,levelList);List<StationVo> stationVos = new ArrayList();for(Station s : stations) { StationVo vo = new StationVo(); vo.setId(s.getId()); vo.setLevel(s.getLevel()); vo.setName(s.getName()); stationVos.add(vo);}

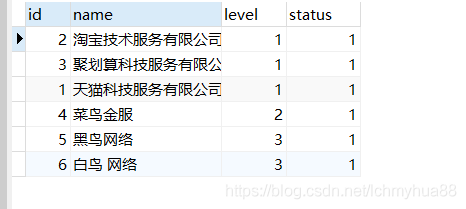

數據庫中四個字段

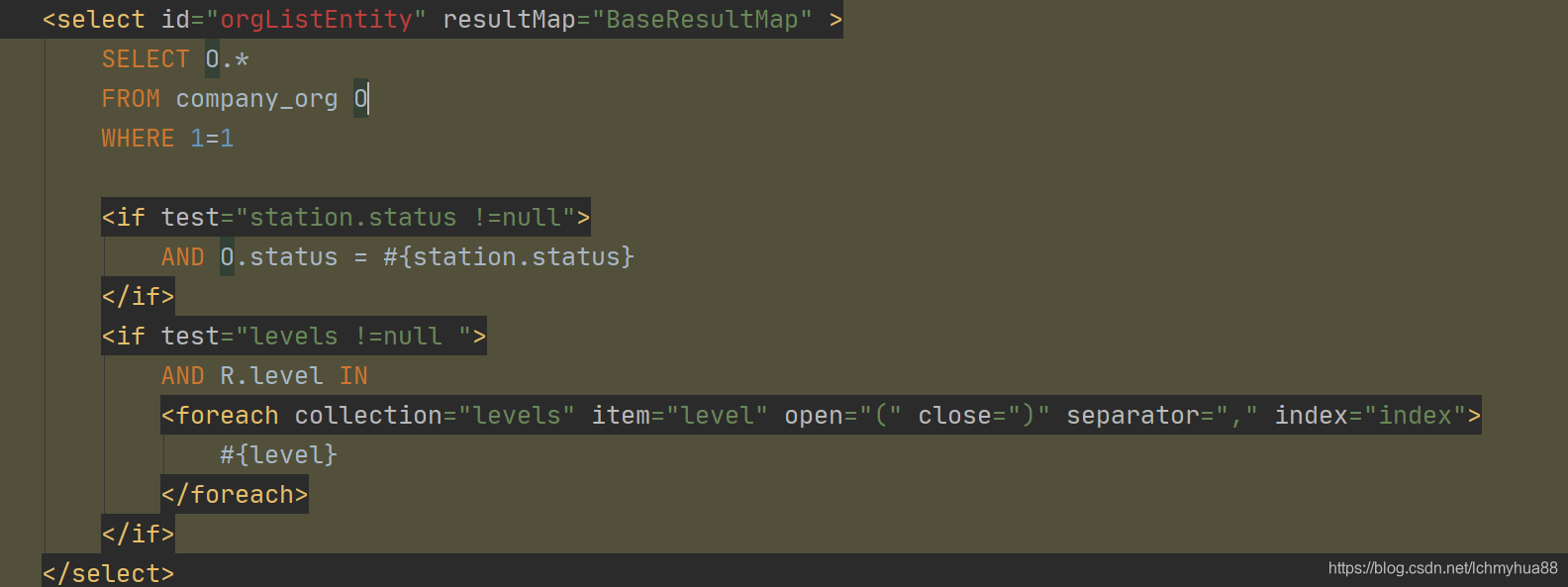

mybatis 配置：

返回的json如下：

{ 'data' : { 'page' : 1, 'pageSize' : 20, 'total' : 6, 'pages' : 1, 'list' : [ { 'id' : 1, 'name' : '天貓科技服務有限公司', 'level' : 1, 'status' : 1, }, { 'id' : 2, 'name' : '淘寶技術服務有限公司', 'level' : 1, 'status' : 1, }, { 'id' : 3, 'name' : '聚劃算科技服務有限公司', 'level' : 1, 'status' : 1, }, { 'id' : 4, 'name' : '菜鳥金服', 'level' : 2, 'status' : 1, }, { 'id' : 5, 'name' : '黑鳥網絡', 'level' : 3, 'status' : 1, }, { 'id' : 6, 'name' : '白鳥 網絡', 'level' : 3, 'status' : 1, } ] }, 'message' : '獲取成功', 'code' : 200}

到此這篇關于SpringBoot mybatis 實現多級樹形菜單的示例代碼的文章就介紹到這了,更多相關SpringBoot mybatis多級樹形菜單內容請搜索好吧啦網以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持好吧啦網！
