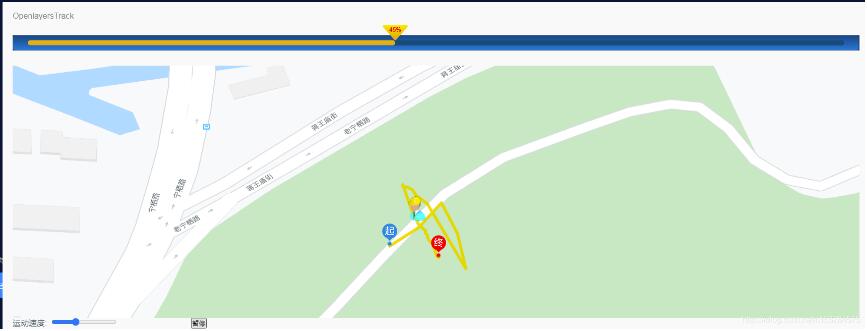

本文實例為大家分享了Vue+Openlayers實現軌跡動畫的具體代碼，供大家參考，具體內容如下

<template> <div class='map-warp'> <h3> <a target='_bank' >OpenlayersTrack</a> </h3> <div class='progress-bar'> <div class='bar-box'> <div :style='{width:progress+’%’}'> <span>{{progress}}%</span> </div> </div> </div> <div class='map'></div> <el-row :gutter='20'> <el-col :span='5'> <label for='speed'> 運動速度:&nbsp; <input type='range' step='10' value='5' /> </label> </el-col> <el-col :span='5'> <button @click='handlerPlay'>{{textContent}}</button> </el-col> </el-row> </div></template><script>import 'ol/ol.css';import Feature from 'ol/Feature';import Map from 'ol/Map';import View from 'ol/View';import Polyline from 'ol/format/Polyline';import { Projection } from 'ol/proj';import { Point, LineString } from 'ol/geom';import { Tile as TileLayer, Vector as VectorLayer } from 'ol/layer';import XYZ from 'ol/source/XYZ';import VectorSource from 'ol/source/Vector';import { Circle as CircleStyle, Fill, Icon, Stroke, Style, Text} from 'ol/style';import { getVectorContext } from 'ol/render';export default { data() { return { map: null, progress: 0, // 進度 animating: false, // 動畫是否開始 speed: null, // 速度 now: null, // 當前時間 textContent: '開始', routeCoords: null, // 數組點集合 routeLength: null, // 數組長度 route: null, // 線 routeFeature: null, // 畫線 geoMarker: null, // 標記 startMarker: null, // 開始標記 endMarker: null, // 結束標記 styles: { route: new Style({ // 線的樣式 stroke: new Stroke({ width: 6, color: [237, 212, 0, 0.8] }) }), icon: new Style({ // 默認icon樣式 image: new CircleStyle({ radius: 7, fill: new Fill({ color: 'red' }), stroke: new Stroke({ color: 'white', width: 2 }) }) }), geoMarker: new Style({ // 設置標記樣式 image: new Icon({ anchor: [0.5, 1], // 偏移位置 // rotation: 0, // 旋轉 // size: [52, 26], // 圖標大小 src: require('@/assets/tx-icon-1.png') }) }), start: new Style({ // 設置開始標記樣式 image: new Icon({ anchor: [0.5, 1], src: require('@/assets/rise.png') }) }), end: new Style({ // 設置結束標記樣式 image: new Icon({ anchor: [0.5, 1], src: require('@/assets/end.png') }) }) }, vectorLayer: null, // 矢量圖層 center: [118.835014569433, 32.08414190192472] // 中心點 }; }, methods: { // 初始化地圖 initMap() { let that = this; that.routeCoords = [ [118.83476768752418, 32.08385299388422], [118.83491813875425, 32.08394894013734], [118.83504349233812, 32.08408332210981], [118.83504349233812, 32.08408332210981], [118.83512889261571, 32.083918456790876], [118.83517286002402, 32.083733744293006], [118.83496824937895, 32.084077663081935], [118.83490797978696, 32.08412326115879], [118.83489815812887, 32.08414025948315], [118.83488806541473, 32.084153465524956], [118.83488315718186, 32.08415572622981], [118.8348782482698, 32.0841596143537], [118.83485807031045, 32.08416812475921], [118.83484798473395, 32.08416424284437], [118.83483789451235, 32.08417148163059], [118.83483789122208, 32.08417934749756], [118.83489794089253, 32.084006273376524], [118.83490803262733, 32.08399523720106], [118.83491321591835, 32.08398700421235], [118.83491812613363, 32.083979861216235], [118.83491812890527, 32.08397308027895], [118.83492822118053, 32.0839606878946], [118.83493831179283, 32.08395236406387], [118.8349443113023, 32.08394818448314], [118.83494840317711, 32.0839421415609], [118.8349582198328, 32.08393707761024], [118.83495822192893, 32.08393192409512], [118.83495822314188, 32.083928940480945], [118.83495822600715, 32.08392188830153], [118.83496831727095, 32.08391193701643], [118.83496832133952, 32.083901901220244], [118.83497432325855, 32.083891754391544], [118.83497841676457, 32.083881642888024], [118.83498850812316, 32.083871420344074], [118.8349985986039, 32.08386336769408], [118.83499860472438, 32.08384817837085], [118.83500869639813, 32.08383714209293], [118.83500870130179, 32.083824936382825], [118.83501279510463, 32.08381401114558], [118.83501852555108, 32.08380088571361], [118.83502861687877, 32.08379066312818] ]; that.routeLength = that.routeCoords.length; that.route = new LineString(that.routeCoords); that.routeFeature = new Feature({ type: 'route', geometry: that.route }); that.geoMarker = new Feature({ type: 'geoMarker', geometry: new Point(that.routeCoords[0]) }); that.startMarker = new Feature({ type: 'start', geometry: new Point(that.routeCoords[0]) }); that.endMarker = new Feature({ type: 'end', geometry: new Point(that.routeCoords[that.routeLength - 1]) }); // that.endMarker.setStyle( // new Style({ // // image: new CircleStyle({ // // radius: 7, // // fill: new Fill({ color: 'red' }), // // stroke: new Stroke({ // // color: 'white', // // width: 2 // // }) // // }), // // image: new Icon({ // // src: require('@/assets/tx-icon-1.png') // // }), // // text: new Text({ // // text: ’11133333333333333333333333333333333311’, // // scale: 1.3, // // fill: new Fill({ // // color: ’#000000’ // // }), // // Stroke:new Stroke({ // // color: ’#FFFF99’, // // width: 3.5 // // }) // // }) // }) // ); that.vectorLayer = new VectorLayer({ source: new VectorSource({ features: [ that.routeFeature, that.geoMarker, that.startMarker, that.endMarker ] // 線、標記、開始標記、結束標記 }), style: function(feature) { // 如果動畫處于活動狀態，則隱藏標記 if (that.animating && feature.get('type') === 'geoMarker') { return null; } return that.styles[feature.get('type')]; } }); this.map = new Map({ target: 'map', layers: [ new TileLayer({ source: new XYZ({ url: 'http://www.google.cn/maps/vt?lyrs=m@189&gl=cn&x={x}&y={y}&z={z}' }), projection: 'EPSG:3857' }), that.vectorLayer ], view: new View({ projection: new Projection({ code: 'EPSG:4326', units: 'degrees' }), center: this.center, zoom: 19, minZoom: 2, maxZoom: 19 }) }); this.mapClick(); }, // 地圖綁定事件 mapClick() { let that = this; this.map.on('click', function(event) { let feature = that.map.getFeaturesAtPixel(event.pixel); let pixel = that.map.getEventPixel(event.originalEvent); let coodinate = event.coordinate; // let temp = feature[0].geometryChangeKey_.target // Point if (feature.length > 0) { console.warn(feature[0].values_.type, 111); // console.warn(feature[0].get(’geometryChangeKey’),9999999999) } }); }, // 運動軌跡開關 handlerPlay() { if (this.textContent === '暫停') { this.stop(false); } else { this.start(); } }, // 軌跡移動 moveFeature(event) { let vectorContext = getVectorContext(event); let frameState = event.frameState; if (this.animating) { let elapsedTime = frameState.time - this.now; let index = Math.round((this.speed * elapsedTime) / 1000); // 進度條 this.progress = Math.floor( ((100 / this.routeLength) * (this.speed * elapsedTime)) / 1000 ); if (index >= this.routeLength) { this.progress = '100'; this.stop(true); return; } let currentPoint = new Point(this.routeCoords[index]); let feature = new Feature(currentPoint); vectorContext.drawFeature(feature, this.styles.geoMarker); } // tell OpenLayers to continue the postrender animation this.map.render(); // 開始移動動畫 }, // 開始動畫 start() { if (this.animating) { this.stop(false); } else { this.animating = true; this.textContent = '暫停'; this.now = new Date().getTime(); let speedInput = document.getElementById('speed'); this.speed = speedInput.value; this.geoMarker.setStyle(null); // hide geoMarker 隱藏標記 // just in case you pan somewhere else this.map.getView().setCenter(this.center); // 設置下中心點 this.vectorLayer.on('postrender', this.moveFeature); this.map.render(); } }, // 停止 stop(ended) { this.progress = 0; this.animating = false; this.textContent = '開始'; let coord = ended ? this.routeCoords[this.routeLength - 1] : this.routeCoords[0]; let geometry = this.geoMarker.getGeometry().setCoordinates(coord); //remove listener this.vectorLayer.un('postrender', this.moveFeature); // 刪除偵聽器 } }, mounted() { this.initMap(); }};</script><style lang='scss'>#map { height: 500px; margin-top: 20px;}/*隱藏ol的一些自帶元素*/.ol-attribution,.ol-zoom { display: none;}.progress-bar { width: 100%; height: 30px; margin: 30px 0; background: url('~@/assets/bg-5.png') center bottom no-repeat; background-size: 100% 30px; position: relative; box-sizing: border-box; .bar-box { position: absolute; top: 10px; left: 30px; right: 30px; height: 10px; border-radius: 5px; background: #034c77; } .bar { height: 10px; border-radius: 5px; background: url('~@/assets/bg-6.png') 0 bottom repeat #ecc520; position: relative; span { width: 50px; height: 50px; line-height: 18px; font-size: 12px; font-weight: bold; text-align: center; position: absolute; color: #fe0000; top: -30px; right: -25px; background: url('~@/assets/bg-7.png') center 0 no-repeat; background-size: 100% 30px; } } }</style>

以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持好吧啦網。
