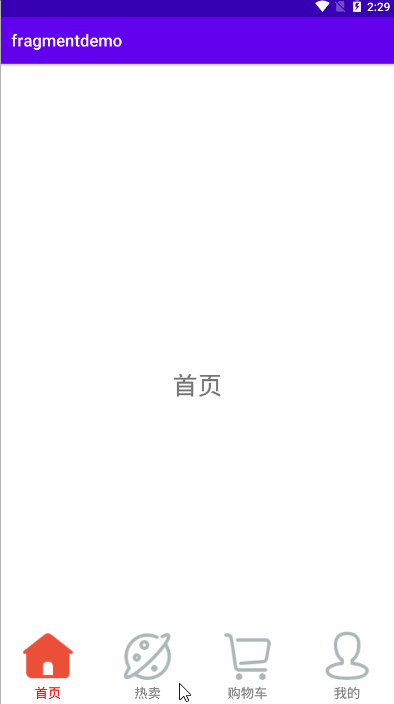

在一些購物商城中經常會遇到這類效果，效果圖如下：

先看效果圖

步驟一：完成對主界面main.xml的創建：

<?xml version='1.0' encoding='utf-8'?><RelativeLayout xmlns:android='http://schemas.android.com/apk/res/android' xmlns:app='http://schemas.android.com/apk/res-auto' xmlns:tools='http://schemas.android.com/tools' android:layout_width='match_parent' android:layout_height='match_parent' tools:context='.MainActivity'> <FrameLayoutandroid: android:layout_width='match_parent'android:layout_height='match_parent'android:layout_alignParentTop='true'/> <RadioGroupandroid:layout_width='match_parent'android:layout_height='wrap_content'android: android:layout_alignParentBottom='true'android:orientation='horizontal'><RadioButton android: android:layout_width='0dp' android:layout_height='match_parent' android:layout_weight='1' android:button='@null' android:drawableTop='@drawable/rb_home_selector' android:text='首頁' /><RadioButton android: android:layout_width='0dp' android:layout_height='match_parent' android:layout_weight='1' android:button='@null' android:drawableTop='@drawable/rb_discover_selector' android:text='熱賣' /><RadioButton android: android:layout_width='0dp' android:layout_height='match_parent' android:layout_weight='1' android:button='@null' android:drawableTop='@drawable/rb_cart_selector' android:text='購物車' /><RadioButton android: android:layout_width='0dp' android:layout_height='match_parent' android:layout_weight='1' android:button='@null' android:drawableTop='@drawable/rb_user_selector' android:text='我的' /> </RadioGroup></RelativeLayout>

radioButton中重復使用的樣式：被抽取出來在style中寫出

<style name='fragment'><item name='android:layout_width'>match_parent</item><item name='android:layout_height'>match_parent</item><item name='android:padding'>5dp</item><item name='android:gravity'>center</item><item name='android:textColor'>@drawable/rb_text_color</item><item name='android:textSize'>16sp</item><item name='android:textStyle'>normal</item> </style>

點擊RadioButton之后，導航欄文字顏色發生改變，聲明在drawable中名字為：rb_text_color代碼如下：

<?xml version='1.0' encoding='utf-8'?><selector xmlns:android='http://schemas.android.com/apk/res/android'> <item android:state_selected='true' android:color='#FF0000'/> <item android:color='#808080'/></selector>

導航欄圖標發生變化這里只寫其中一個其他三個都基本一樣：

<?xml version='1.0' encoding='utf-8'?><selector xmlns:android='http://schemas.android.com/apk/res/android'> <item android:drawable='@drawable/icon_cartfill_press' android:state_selected='true' /> <item android:drawable='@drawable/icon_cart' /></selector>

完成這些基本步驟之后，接下來就需要寫Fragment的布局

<?xml version='1.0' encoding='utf-8'?><LinearLayout xmlns:android='http://schemas.android.com/apk/res/android' android:layout_width='match_parent' android:layout_height='match_parent' android:gravity='center'> <TextViewandroid: android:layout_width='wrap_content'android:layout_height='wrap_content'android:text='購物車'android:textSize='30sp' /></LinearLayout>

寫出其中一個另外三個類似。

之后后臺代碼中創建Fragment,這里也寫其中一個：CartFragment

package com.example.fragmentdemo;import android.os.Bundle;import android.view.LayoutInflater;import android.view.View;import android.view.ViewGroup;import android.widget.TextView;import androidx.annotation.NonNull;import androidx.annotation.Nullable;import androidx.fragment.app.Fragment;public class CartFragment extends Fragment { private View view; private TextView tv_home; @Nullable @Override public View onCreateView(@NonNull LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {if (view==null){ view = inflater.inflate(R.layout.cart_fragment,container,false);}return view; }}

步驟二：在MainActivity中，完成對fragment的切換功能具體注釋已在代碼中給出。

package com.example.fragmentdemo;import androidx.appcompat.app.AppCompatActivity;import androidx.fragment.app.Fragment;import androidx.fragment.app.FragmentManager;import androidx.fragment.app.FragmentTransaction;import android.os.Bundle;import android.util.Log;import android.view.View;import android.widget.RadioButton;import android.widget.RadioGroup;import java.time.LocalDate;import java.util.ArrayList;import java.util.List;public class MainActivity extends AppCompatActivity implements RadioGroup.OnCheckedChangeListener { private RadioButton rb_home,rb_discover,rb_cart,rb_user; private RadioGroup rg_group; private List<Fragment> fragments; private int position=0; private static final String TAG = 'MainActivity'; @Override protected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);rb_home=findViewById(R.id.rb_home);rb_discover=findViewById(R.id.rb_discover);rb_cart=findViewById(R.id.rb_cart);rb_user=findViewById(R.id.rb_user);rg_group=findViewById(R.id.rg_group);//默認選中第一個rb_home.setSelected(true);rg_group.setOnCheckedChangeListener(this);//初始化fragmentinitFragment();//默認布局，選第一個defaultFragment(); } private void defaultFragment() {FragmentManager fragmentManager = getSupportFragmentManager();FragmentTransaction transaction = fragmentManager.beginTransaction();transaction.replace(R.id.fragment_layout,fragments.get(0));transaction.commit(); } private void setSelected() {rb_home.setSelected(false);rb_discover.setSelected(false);rb_cart.setSelected(false);rb_user.setSelected(false); } private void initFragment() {fragments = new ArrayList<>();fragments.add(0,new HomeFragment());fragments.add(1,new DiscoverFragment());fragments.add(2,new CartFragment());fragments.add(3,new UserFragment()); } @Override public void onCheckedChanged(RadioGroup group, int i) {//獲取fragment管理類對象FragmentManager fragmentManager = getSupportFragmentManager();//拿到fragmentManager的觸發器FragmentTransaction transaction = fragmentManager.beginTransaction();switch (i){ case R.id.rb_home:position=0;//調用replace方法，將fragment,替換到fragment_layout這個id所在UI，或者這個控件上面來//這是創建replace這個事件，如果想要這個事件執行，需要把這個事件提交給觸發器//用commit()方法transaction.replace(R.id.fragment_layout,fragments.get(0));//將所有導航欄設成默認色setSelected();rb_home.setSelected(true);break; case R.id.rb_discover:position=1;transaction.replace(R.id.fragment_layout,fragments.get(1));//將所有導航欄設成默認色setSelected();rb_discover.setSelected(true);break; case R.id.rb_cart:position=2;transaction.replace(R.id.fragment_layout,fragments.get(2));//將所有導航欄設成默認色setSelected();rb_cart.setSelected(true);break; case R.id.rb_user:position=3;transaction.replace(R.id.fragment_layout,fragments.get(3));//將所有導航欄設成默認色setSelected();rb_user.setSelected(true);break;}//事件的提交transaction.commit(); }}

這樣就完成了一個簡單的底部導航欄功能，這個只能通過點擊切換fragment，不能通過左右滑動去切換fragment。

以上就是Android 中使用RadioGroup+Fragment實現底部導航欄的功能的詳細內容，更多關于android 底部導航欄的資料請關注好吧啦網其它相關文章！
