前段時間寫了一篇基于mybatis實現的多數據源博客。感覺不是很好，這次打算加入git，來搭建一個基于Mybatis-Plus的多數據源項目Mybatis-Plus就是香

前言：該項目分為master數據源與local數據源。假定master數據源為線上數據庫，local為本地數據庫。后續我們將通過xxl-job的方式，將線上(master)中的數據同步到本地(local)中

項目git地址 抽時間把項目提交到git倉庫，方便大家直接克隆sql文件已置于項目中，數據庫使用的mysql

創建項目

我這里使用的idea，正常創建spring boot項目就行了。

sql

-- 創建master數據庫CREATE DATABASE db_master;USE db_master;-- 用戶表CREATE TABLE users(id INT PRIMARY KEY AUTO_INCREMENT COMMENT ’主鍵id’,username VARCHAR(20) NOT NULL COMMENT ’用戶名’,pwd VARCHAR(50) NOT NULL COMMENT ’密碼’,phone CHAR(11) NOT NULL COMMENT ’手機號’,email VARCHAR(50) COMMENT ’郵箱’,gender CHAR(1) COMMENT ’性別 1-->男 0-->女’,age INT COMMENT ’年齡’,created_time TIMESTAMP NULL DEFAULT NULL COMMENT ’創建時間’,updated_time TIMESTAMP NULL DEFAULT NULL COMMENT ’修改時間’,deleted_time TIMESTAMP NULL DEFAULT NULL COMMENT ’刪除時間’,type INT DEFAULT 1 COMMENT ’狀態 1-->啟用 2-->禁用 3-->軟刪除’)ENGINE=INNODB;INSERT INTO users(username,pwd,phone,email,gender,age) VALUES(’supperAdmin’,’admin123’,’13000000000’,’super@admin.com’,1,20); INSERT INTO users(username,pwd,phone,email,gender,age) VALUES(’admin’,’admin’,’13200840033’,’admin@163.com’,0,14); INSERT INTO users(username,pwd,phone,email,gender,age) VALUES(’wanggang’,’wanggang’,’13880443322’,’wang@gang.cn’,1,36); INSERT INTO users(username,pwd,phone,email,gender,age) VALUES(’xiaobao’,’xiaobao’,’18736450102’,’xiao@bao.com’,0,22); INSERT INTO users(username,pwd,phone,email,gender,age) VALUES(’zhaoxing’,’zhaoxing’,’18966004400’,’zhao@xing.com’,1,29); INSERT INTO users(username,pwd,phone,email,gender,age) VALUES(’chenyun’,’chenyun’,’13987613540’,’chen@yun.com’,1,25); INSERT INTO users(username,pwd,phone,email,gender,age) VALUES(’ouyangruixue’,’ouyangruixue’,’15344773322’,’ouyang@163.com’,0,24); -- 創建local數據庫CREATE DATABASE db_local;USE db_local;-- 本地庫用戶表CREATE TABLE users(id INT PRIMARY KEY AUTO_INCREMENT COMMENT ’主鍵id’,username VARCHAR(20) NOT NULL COMMENT ’用戶名’,pwd VARCHAR(50) NOT NULL COMMENT ’密碼’,phone CHAR(11) NOT NULL COMMENT ’手機號’,email VARCHAR(50) COMMENT ’郵箱’,gender CHAR(1) COMMENT ’性別 1-->男 0-->女’,age INT COMMENT ’年齡’,created_time TIMESTAMP NULL DEFAULT NULL COMMENT ’創建時間’,updated_time TIMESTAMP NULL DEFAULT NULL COMMENT ’修改時間’,deleted_time TIMESTAMP NULL DEFAULT NULL COMMENT ’刪除時間’,type INT DEFAULT 1 COMMENT ’狀態 1-->啟用 2-->禁用 3-->軟刪除’)ENGINE=INNODB;-- 本地庫測試表CREATE TABLE local_test(id INT PRIMARY KEY AUTO_INCREMENT,str VARCHAR(20))ENGINE=INNODB;INSERT INTO local_test(str) VALUES (’Hello’);INSERT INTO local_test(str) VALUES (’World’);INSERT INTO local_test(str) VALUES (’Mysql’);INSERT INTO local_test(str) VALUES (’^.^’);

pom文件

目前只引入了lombok、mybatis-plus、mysql相關的依賴

<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency><!-- lombok --> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <optional>true</optional> </dependency> <!-- Mybatis-Plus --> <dependency> <groupId>com.baomidou</groupId> <artifactId>mybatis-plus-boot-starter</artifactId> <version>3.2.0</version> </dependency> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <scope>runtime</scope> </dependency>

application.yml

properties刪除，yml創建。其實無所謂yml還是properties

server: port: 8001spring: datasource: master: url: jdbc:mysql://localhost:3306/db_master?useUnicode=true&characterEncoding=UTF-8&useSSL=false&serverTimezone=Asia/Shanghai&allowMultiQueries=true username: root password: 123456 driver-class-name: com.mysql.cj.jdbc.Driver local: url: jdbc:mysql://localhost:3306/db_local?useUnicode=true&characterEncoding=UTF-8&useSSL=false&serverTimezone=Asia/Shanghai&allowMultiQueries=true username: root password: 123456 driver-class-name: com.mysql.cj.jdbc.Drivermybatis-plus: mapper-locations: classpath:mappers/*/*Mapper.xml #實體掃描，多個package用逗號或者分號分隔 typeAliasesPackage: com.niuniu.sys.module check-config-location: true configuration: #是否開啟自動駝峰命名規則（camel case）映射 map-underscore-to-camel-case: true #全局地開啟或關閉配置文件中的所有映射器已經配置的任何緩存 cache-enabled: false call-setters-on-nulls: true #配置JdbcTypeForNull, oracle數據庫必須配置 jdbc-type-for-null: ’null’ #MyBatis 自動映射時未知列或未知屬性處理策略 NONE：不做任何處理 (默認值), WARNING：以日志的形式打印相關警告信息, FAILING：當作映射失敗處理，并拋出異常和詳細信息 auto-mapping-unknown-column-behavior: warning global-config: banner: false db-config: #主鍵類型 0:'數據庫ID自增', 1:'未設置主鍵類型',2:'用戶輸入ID (該類型可以通過自己注冊自動填充插件進行填充)', 3:'全局唯一ID (idWorker), 4:全局唯一ID (UUID), 5:字符串全局唯一ID (idWorker 的字符串表示)'; id-type: auto #字段驗證策略 IGNORED:'忽略判斷', NOT_NULL:'非NULL判斷', NOT_EMPTY:'非空判斷', DEFAULT 默認的,一般只用于注解里(1. 在全局里代表 NOT_NULL,2. 在注解里代表 跟隨全局) field-strategy: NOT_EMPTY #數據庫大寫下劃線轉換 capital-mode: true #邏輯刪除值 logic-delete-value: 0 #邏輯未刪除值 logic-not-delete-value: 1pagehelper: #pagehelper分頁插件 helperDialect: mysql #設置數據庫方言 reasonable: true supportMethodsArguments: true params: count=countSql

目錄結構

由于該項目分為兩個數據源。在各個分層中，你將分別見到master、local。

備注：由于users表在兩個數據源中完全相同，將Users實體置于model層公用

關鍵代碼

在config包中，我們需要對master、local的數據源進行配置，使其可以通過不同的請求，自動切換數據源

另外 由于該項目使用mybatis-plus，在創建SqlSessionFactory的時候，請使用MybatisSqlSessionFactoryBean進行bean對象的創建

local數據源

package com.demo.config;import com.baomidou.mybatisplus.extension.spring.MybatisSqlSessionFactoryBean;import com.zaxxer.hikari.HikariDataSource;import org.apache.ibatis.session.SqlSessionFactory;import org.mybatis.spring.SqlSessionTemplate;import org.mybatis.spring.annotation.MapperScan;import org.springframework.beans.factory.annotation.Qualifier;import org.springframework.beans.factory.annotation.Value;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;import org.springframework.core.io.ClassPathResource;import org.springframework.core.io.support.PathMatchingResourcePatternResolver;import org.springframework.jdbc.datasource.DataSourceTransactionManager;import javax.sql.DataSource;@Configuration@MapperScan(basePackages = 'com.demo.dao.local', sqlSessionFactoryRef = 'localSqlSessionFactory')public class LocalDataSourceConfig { @Value('${spring.datasource.local.driver-class-name}') private String driverClassName; @Value('${spring.datasource.local.url}') private String url; @Value('${spring.datasource.local.username}') private String username; @Value('${spring.datasource.local.password}') private String password; @Bean(name = 'localDataSource') public DataSource localDataSource() { HikariDataSource dataSource = new HikariDataSource(); dataSource.setUsername(username); dataSource.setPassword(password); dataSource.setJdbcUrl(url); dataSource.setDriverClassName(driverClassName); dataSource.setMaximumPoolSize(10); dataSource.setMinimumIdle(5); dataSource.setPoolName('localDataSourcePool'); return dataSource; } /** * local數據源 */ @Bean(name = 'localSqlSessionFactory') public SqlSessionFactory sqlSessionFactory(@Qualifier('localDataSource') DataSource dataSource) throws Exception { MybatisSqlSessionFactoryBean bean = new MybatisSqlSessionFactoryBean(); bean.setDataSource(dataSource); // 設置Mybatis全局配置路徑 bean.setConfigLocation(new ClassPathResource('mybatis-config.xml')); bean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources('classpath*:mappers/local/*.xml')); return bean.getObject(); } @Bean(name = 'localTransactionManager') public DataSourceTransactionManager transactionManager(@Qualifier('localDataSource') DataSource dataSource) { return new DataSourceTransactionManager(dataSource); } @Bean(name = 'localSqlSessionTemplate') public SqlSessionTemplate testSqlSessionTemplate( @Qualifier('localSqlSessionFactory') SqlSessionFactory sqlSessionFactory) throws Exception { return new SqlSessionTemplate(sqlSessionFactory); }}

master數據源

package com.demo.config;import com.baomidou.mybatisplus.extension.spring.MybatisSqlSessionFactoryBean;import com.zaxxer.hikari.HikariDataSource;import org.apache.ibatis.session.SqlSessionFactory;import org.mybatis.spring.SqlSessionTemplate;import org.mybatis.spring.annotation.MapperScan;import org.springframework.beans.factory.annotation.Qualifier;import org.springframework.beans.factory.annotation.Value;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;import org.springframework.context.annotation.Primary;import org.springframework.core.io.ClassPathResource;import org.springframework.core.io.support.PathMatchingResourcePatternResolver;import org.springframework.jdbc.datasource.DataSourceTransactionManager;import javax.sql.DataSource;@Configuration@MapperScan(basePackages = 'com.demo.dao.master', sqlSessionFactoryRef = 'masterSqlSessionFactory')public class MasterDataSourceConfig { @Value('${spring.datasource.master.driver-class-name}') private String driverClassName; @Value('${spring.datasource.master.url}') private String url; @Value('${spring.datasource.master.username}') private String username; @Value('${spring.datasource.master.password}') private String password; @Bean(name = 'masterDataSource') @Primary public DataSource masterDataSource() { HikariDataSource dataSource = new HikariDataSource(); dataSource.setUsername(username); dataSource.setPassword(password); dataSource.setJdbcUrl(url); dataSource.setDriverClassName(driverClassName); dataSource.setMaximumPoolSize(10); dataSource.setMinimumIdle(5); dataSource.setPoolName('masterDataSource'); return dataSource; } /** * master數據源 */ @Bean(name = 'masterSqlSessionFactory') @Primary public SqlSessionFactory sqlSessionFactory(@Qualifier('masterDataSource') DataSource dataSource) throws Exception { MybatisSqlSessionFactoryBean bean = new MybatisSqlSessionFactoryBean(); bean.setDataSource(dataSource); bean.setConfigLocation(new ClassPathResource('mybatis-config.xml')); bean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources('classpath*:mappers/master/*.xml')); return bean.getObject(); } @Bean(name = 'masterTransactionManager') @Primary public DataSourceTransactionManager transactionManager(@Qualifier('masterDataSource') DataSource dataSource) { return new DataSourceTransactionManager(dataSource); } @Bean(name = 'masterSqlSessionTemplate') @Primary public SqlSessionTemplate testSqlSessionTemplate( @Qualifier('masterSqlSessionFactory') SqlSessionFactory sqlSessionFactory) throws Exception { return new SqlSessionTemplate(sqlSessionFactory); }}

部分代碼

Users實體類

package com.demo.model;import lombok.Data;import java.util.Date;@Datapublic class Users { private Integer id; private String username; private String pwd; private String phone; private String email; private Integer gender; private Integer age; private Date created_time; private Date updated_time; private Date deleted_time; private Integer type;}

UsersMapper

package com.demo.dao.master;import com.baomidou.mybatisplus.core.mapper.BaseMapper;import com.demo.model.Users;import org.apache.ibatis.annotations.Mapper;@Mapperpublic interface UsersMapper extends BaseMapper<Users> {}

UsersService

package com.demo.service.master;import com.baomidou.mybatisplus.extension.service.IService;import com.demo.model.Users;public interface UsersService extends IService<Users> {}

UsersServiceImpl

package com.demo.service.master.impl;import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;import com.demo.dao.master.UsersMapper;import com.demo.model.Users;import com.demo.service.master.UsersService;import org.springframework.stereotype.Service;@Servicepublic class UsersServiceImpl extends ServiceImpl<UsersMapper, Users> implements UsersService {}

UsersController

package com.demo.controller.master;import com.demo.model.Users;import com.demo.service.master.UsersService;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RestController;import java.util.List;@RestController@RequestMapping('/master')public class UsersController { @Autowired private UsersService userssService; @RequestMapping('/users') public List<Users> list() { return userssService.list(); }}

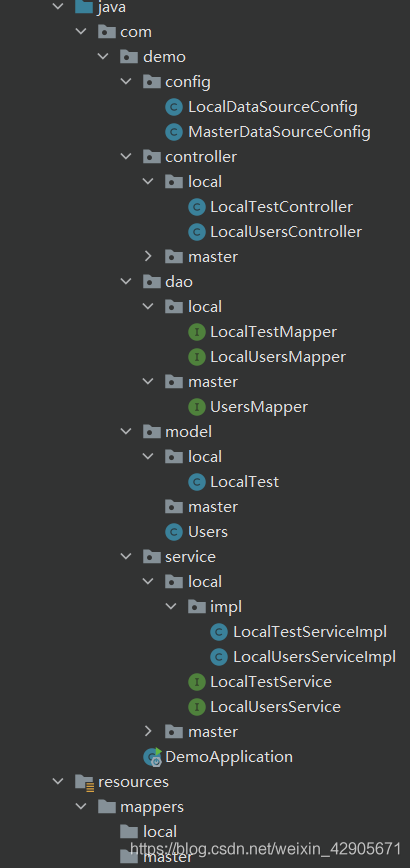

最終的項目結構

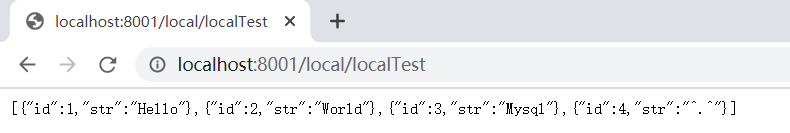

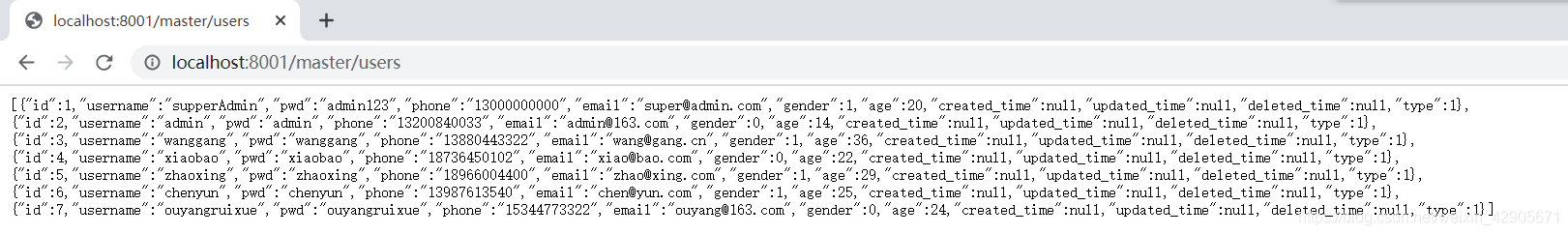

運行結果

至此Spring Boot + Mybatis-Plus已經完成了多數據源的實現。最后再寫一點我遇到的坑吧1、master與local中不要出現同名的文件2、數據源配置中SqlSessionFactoryBean替換為MybatisSqlSessionFactoryBean

下一篇將會圍繞xxl-job任務調度中心，介紹如何通過xxl-job實現本地庫與線上庫的定時同步
