目錄一、Starters原理1.1 Starters場景啟動器二、自定義Starters三、代碼步驟一、Starters原理1.1 Starters場景啟動器

1、場景需要用到的依賴是什么？

比如依賴的jar

2、如何編寫自動配置？

以WebMvcAutoConfiguration自動配置為例:

@Configuration@ConditionalOnWebApplication@ConditionalOnClass({ Servlet.class, DispatcherServlet.class,WebMvcConfigurerAdapter.class })@ConditionalOnMissingBean(WebMvcConfigurationSupport.class)@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE + 10)@AutoConfigureAfter({ DispatcherServletAutoConfiguration.class,ValidationAutoConfiguration.class })public class WebMvcAutoConfiguration {public static final String DEFAULT_PREFIX = '';public static final String DEFAULT_SUFFIX = '';

@Configuration指定這是一個配置類@ConditionalOnXXX 在指定條件成立的情況下自動配置類生效

自動裝配順序在特定自動裝配Class之前 @AutoConfigureBefore在特定自動裝配Class之后@AutoConfigureAfter指定順序@AutoConfigureOrder

@Bean 給容器中添加組件@ConfigurationPropertie結合相關xxxProperties類來綁定相關的配置

@ConfigurationProperties(prefix = 'spring.mvc')public class WebMvcProperties {}

@EnableConfigurationProperties 讓xxxProperties生效加入到容器中

@Configuration@Import(EnableWebMvcConfiguration.class)@EnableConfigurationProperties({ WebMvcProperties.class, ResourceProperties.class })public static class WebMvcAutoConfigurationAdapter extends WebMvcConfigurerAdapter {}

配置自動裝配Bean：自動配置類要能加載將需要啟動就加載的自動配置類，將標注@Configuration的自動配置類配置在META?INF/spring.factories下，自動配置類就會生效

# Auto Configureorg.springframework.boot.autoconfigure.EnableAutoConfiguration=org.springframework.boot.autoconfigure.admin.SpringApplicationAdminJmxAutoConfiguration,org.springframework.boot.autoconfigure.aop.AopAutoConfiguration,

3、模式

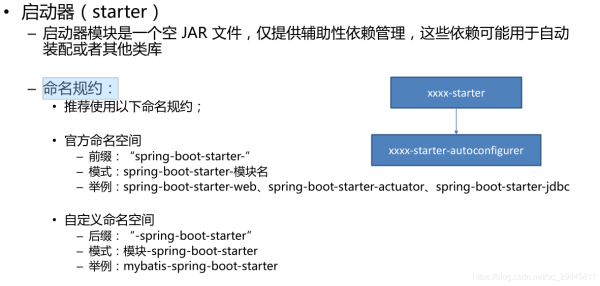

啟動器（starter）

啟動器只用來做依賴導入專門寫一個自動配置模塊啟動器依賴自動配置，別人只需要引入啟動器（starters）

mybatis-spring-boot-starter 自定義啟動器名 -spring-boot-starter

二、自定義Starters

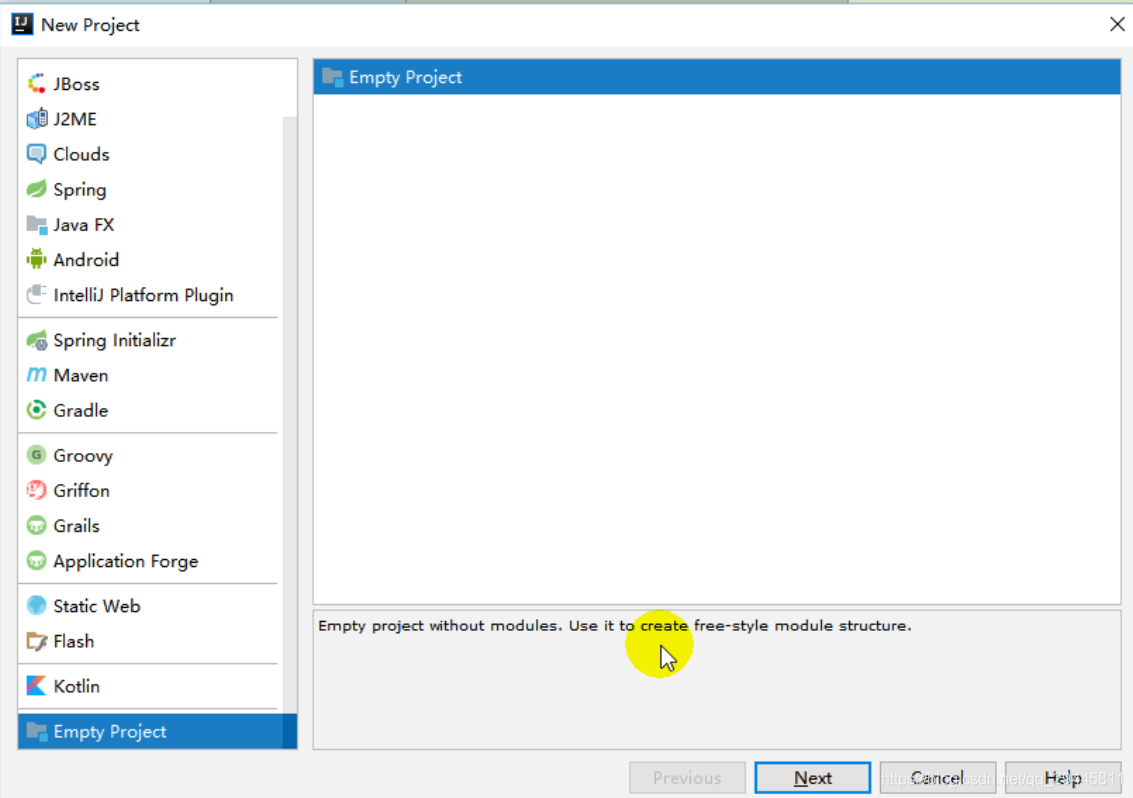

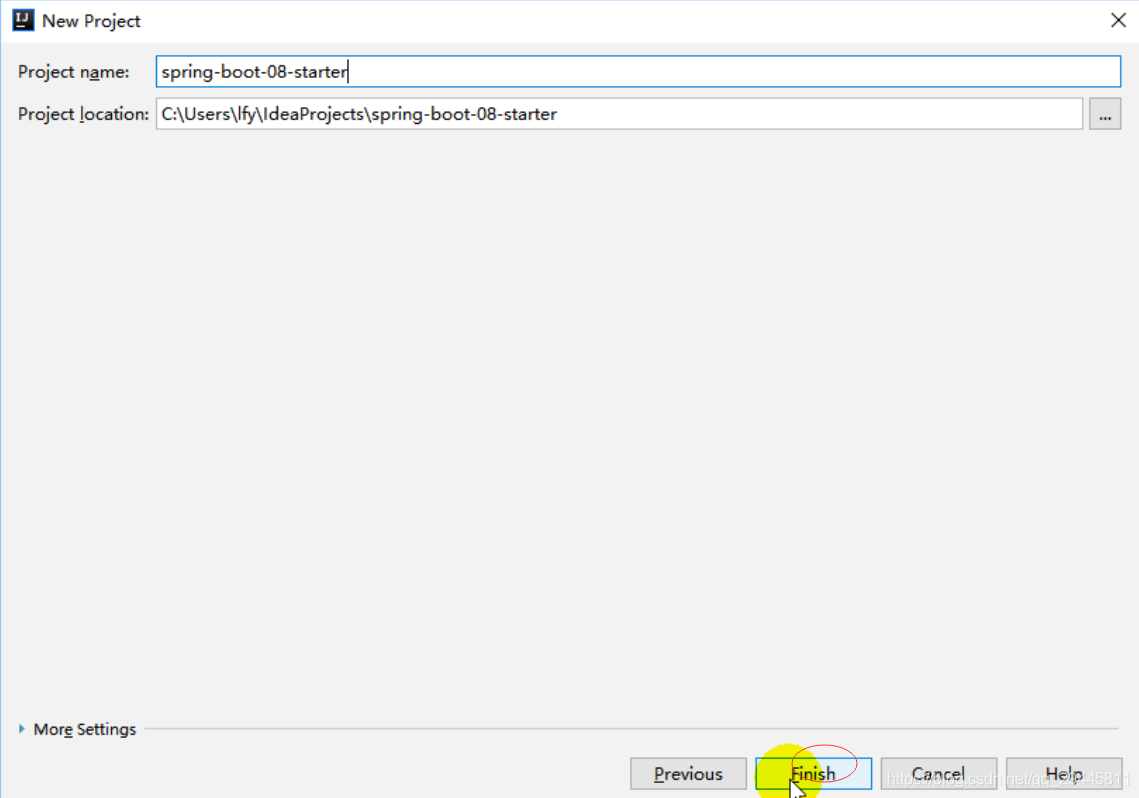

構建項目：1.先創建一個空工程

2、創建兩個模塊分別是啟動器starter的maven模塊和spring的初始化器創建的自動配置模塊

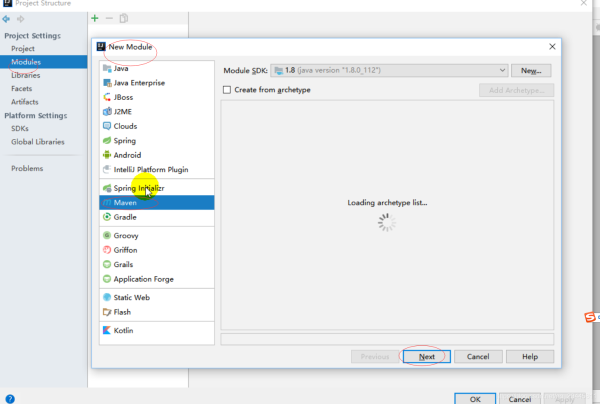

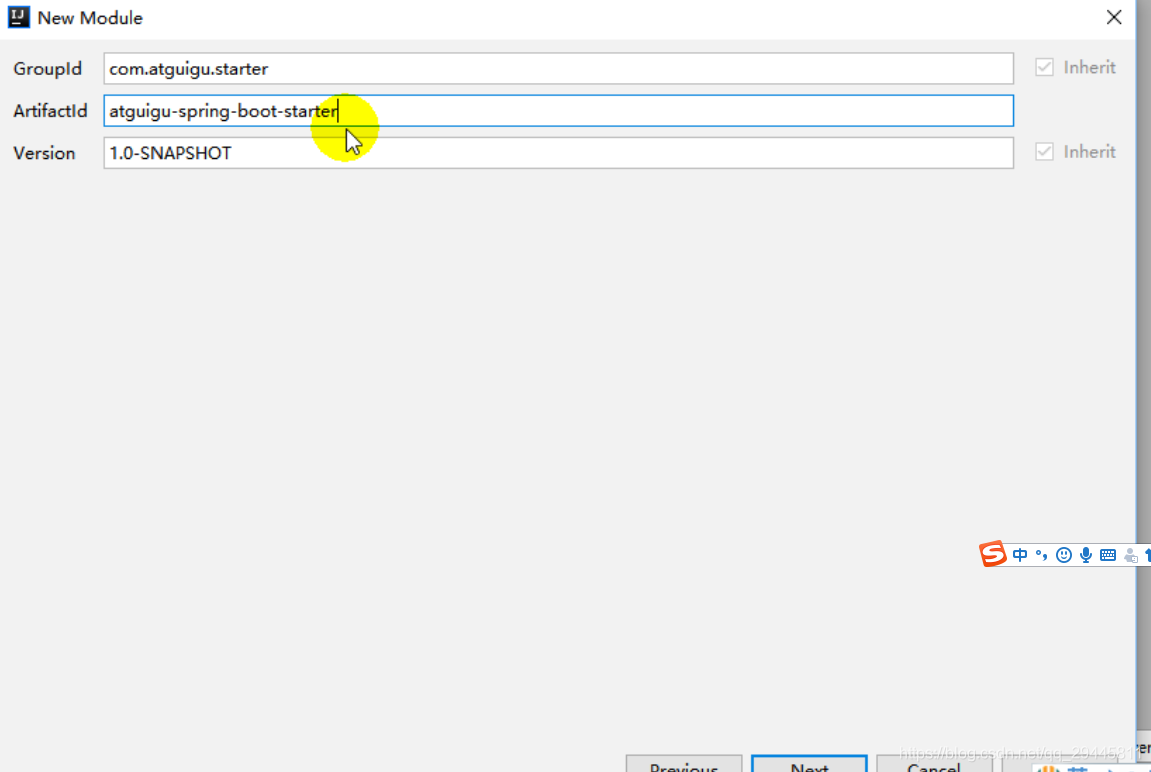

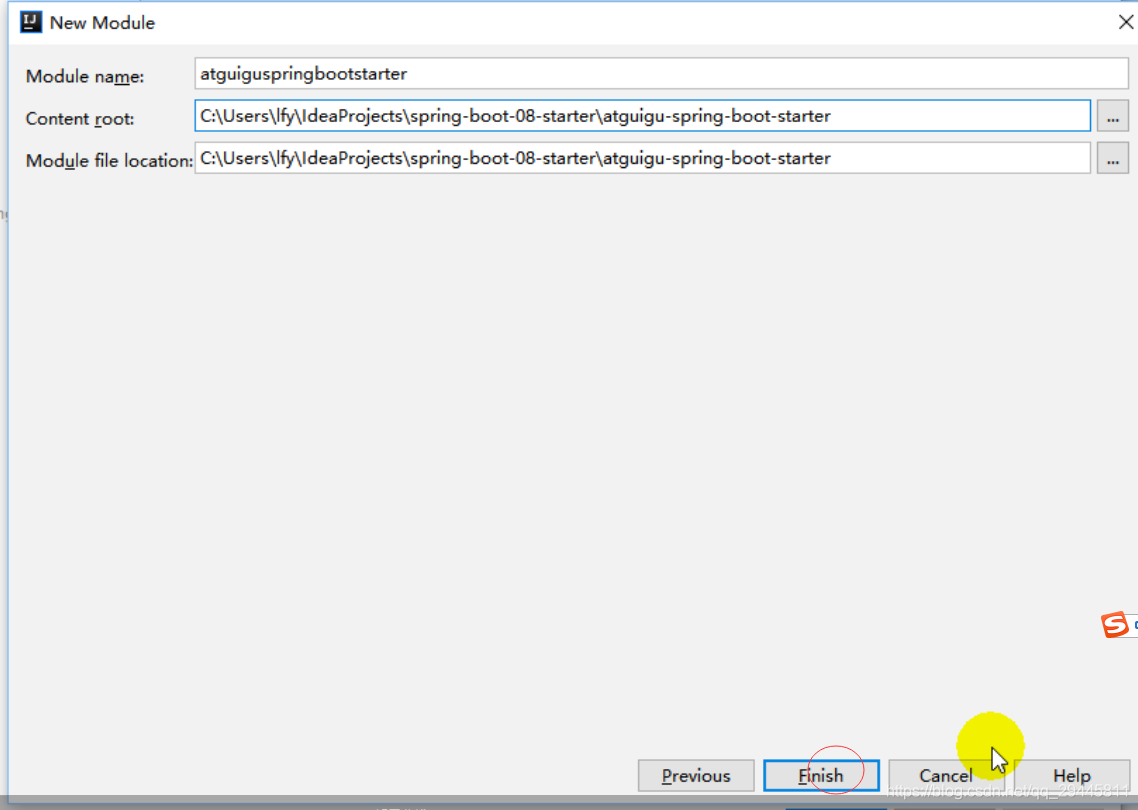

啟動器maven模塊

自定義的starters

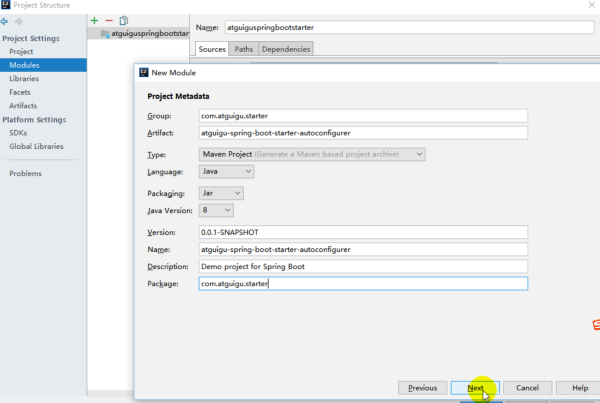

spring的初始化器創建模塊（創建自動配置相關的模塊）

三、代碼步驟

在啟動器starter的pom文件中引入配置類的坐標ming-spring-boot-starter-autoconfigurer

<?xml version='1.0' encoding='UTF-8'?><project xmlns='http://maven.apache.org/POM/4.0.0' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:schemaLocation='http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd'> <modelVersion>4.0.0</modelVersion> <groupId>com.ming.springboot</groupId> <artifactId>ming-spring-boot-starter</artifactId> <version>1.0-SNAPSHOT</version> <dependencies><dependency> <groupId>com.ming.springboot</groupId> <artifactId>ming-spring-boot-starter-autoconfigurer</artifactId> <version>0.0.1-SNAPSHOT</version></dependency> </dependencies></project>

寫一個打招呼的功能

package com.ming.springboot;/** * 打招呼的 * */public class HelloService { HelloProperties helloProperties; public HelloProperties getHelloProperties() {return helloProperties; } public void setHelloProperties(HelloProperties helloProperties) {this.helloProperties = helloProperties; } public String sayHello(String name){return helloProperties.getPrefix()+'-'+name+helloProperties.getSuffix(); }}

HelloProperties 和Helloservice 進行屬性綁定的

package com.ming.springboot;import org.springframework.boot.context.properties.ConfigurationProperties;@ConfigurationProperties(prefix = 'com.ming')public class HelloProperties { private String prefix; private String suffix; public String getPrefix() {return prefix; } public void setPrefix(String prefix) {this.prefix = prefix; } public String getSuffix() {return suffix; } public void setSuffix(String suffix) {this.suffix = suffix; }}

自動配置類

package com.ming.springboot;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.boot.autoconfigure.condition.ConditionalOnWebApplication;import org.springframework.boot.context.properties.EnableConfigurationProperties;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;@Configuration@ConditionalOnWebApplication //web應用才生效@EnableConfigurationProperties(HelloProperties.class)public class HelloServiceAutoConfiguration { @Autowired HelloProperties helloProperties; @Bean public HelloService helloService(){HelloService helloService = new HelloService();helloService.setHelloProperties(helloProperties);return helloService; }}

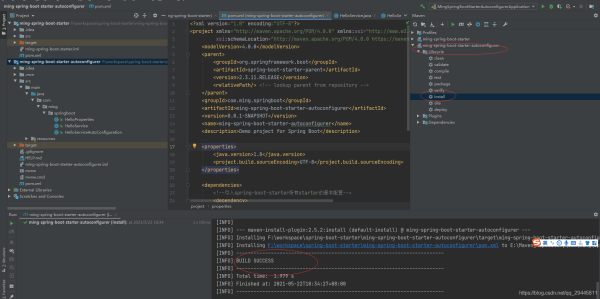

然后將這兩個模塊安裝到maven倉庫中先安裝配置模塊因?yàn)閟tarter模塊依賴配置模塊，別人調用我們的starter模塊就行了

然后將啟動器starter也裝到倉庫中，別人就可以用坐標引入了

在別的項目中引入自定義的啟動器starter

<!--引入自定義的starter--><dependency> <groupId>com.ming.springboot</groupId> <artifactId>ming-spring-boot-starter</artifactId> <version>1.0-SNAPSHOT</version></dependency>

配置application.properties

#自定義啟動器startercom.ming.prefix=一起學習com.ming.suffix=你學費了嗎

測試

@Autowired HelloService helloService; @Test public void starterTest(){String sayHello = helloService.sayHello('自定義starter');System.out.println(sayHello); }
